CE
Parallel connection
Protection class III
RoHS
Product number:
86270

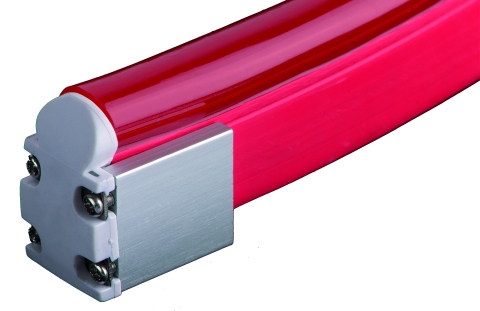

Flex.LEDStrip,24V,Rot 5M 32,5W
Product information "Flex.LEDStrip,24V,Rot 5M 32,5W"
- Vardaflex Neon tube Colour IP68
- Flexible LED strip sealed in UV, chlorine, salt water and solvent-resistant PCV,
- for indoor and outdoor use
- 10.6W (red 6,5W), 60 LED, 135 lm (green per metre)
- Cuttable every 166,67 mm or 10 LEDs, LED spacing: 16.67mm
- Easy installation due to solder-free connectors.
- Maximum lengths per connection: 20 metres
- Bending radius: 6 cm
- Scope of delivery: 5 metre roll, in-feeder connector and an
- end cap was provided.
- Up to 20 metres installable withozt any interruption
- (feed-in both sides upwards of 10 metres).
- Can be fed-in anew - thus installable praticically endlessly.
- Other lenghts available on request.
- Temperature range: -20 to +45°C
- Processing temperature: 0 - 45 °C
Technical Data
| BAR code: | 4012094862705 |
|---|---|
| Width: | 11 mm |
| Height: | 29 mm |
| Length: | 5000 mm |
| Unit Code: | piece |
| Customer discount group code: | SL |
| Lumen per fixture (lm): | 375 lm |
| Lumen per LED (lm): | 1,25 lm |
| Current: | 1354 mA |
| Temperature range: | -10 - 45 |
| LEDs per meter: | 60 |
| Cutting length in mm: | 166,67 mm |
| Lumen per meter: | 75 |
| Lumen per watt: | 11,54 |
| IP protection rating: | 68 |
| Power: | 32,5 W |
| Catalog color code: | rot |
| Led color code: | Rot |
| Leuchte: | including LED |
| Beam angle: | 270 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 300 |
| Gehaeuse code: | Kunststoff |
| Re skus: | 68314,80474,85376 |
| Auslaufartikel: | Yes |
| Ecodesign: | not relevant |
