CE
Parallel connection
Protection class III
RoHS
UV-resistant
Product number:
86030

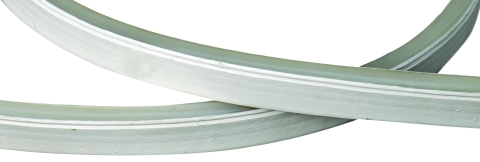

Flex.LEDStrip,24V,ROT 10M 72W
Product information "Flex.LEDStrip,24V,ROT 10M 72W"
- Flexible LED Stripe sealed in UV-, Chlorine-,
- salt water- and solvent resitant white PVC
- for indoor- and outdoor use
- cuttable every 166.67 mm / 10 LEDs
- Amount of LEDs: 600
- LED spacing: 16.67mm
- Beam Angle: 160°
- CRI: n/A
- Light flux per metre: 44 lm
- Load per Meter: 7,5W
- Lifespan L70: >= 36.000h
- Energy efficiencyclass: E
- LxWxH in mm: 10.000 x 16 x 17
- Temperature range: -20 to +45°C
- Processing temperature: +10 to +45°C
- Maximum length per connection: 10 metre
- bending diameter: 12 cm
Technical Data
| BAR code: | 4012094860305 |
|---|---|

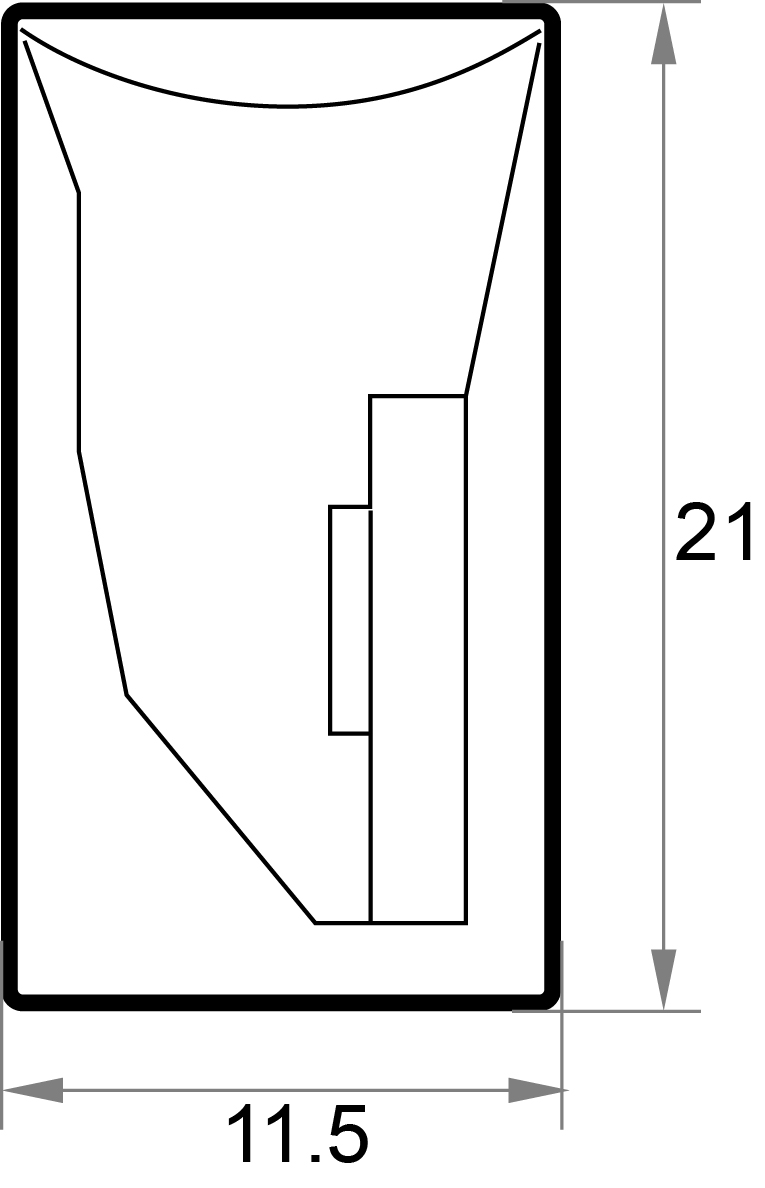

| Width: | 11 mm |
| Height: | 21 mm |
| Length: | 10000 mm |
| Unit Code: | piece |
| Customer discount group code: | R2 |
| Lumen per fixture (lm): | 1000 lm |
| Lumen per LED (lm): | 1,67 lm |
| Current: | 3000 mA |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 60 |
| Cutting length in mm: | 166,67 mm |
| Lumen per meter: | 100 |
| Lumen per watt: | 13,8 |
| IP protection rating: | 68 |
| Power: | 72 W |
| Catalog color code: | weiss |
| Led color code: | Rot |
| Leuchte: | including LED |
| Beam angle: | 160 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 600 |
| Gehaeuse code: | Kunststoff |
| Auslaufartikel: | Yes |
| L70: | 36000 |
| Ecodesign: | not relevant |
