CE
Disposal instructions according to 2012/19/EU
Only suitable for indoor installations
Parallel connection
Protection class III
RoHS
Product number:
79040
Flex.LEDStrip,24V,Innen,DTW
Product information "Flex.LEDStrip,24V,Innen,DTW"
- flexible LED Strip with self adhesive backside,
- for indoor use, IP20

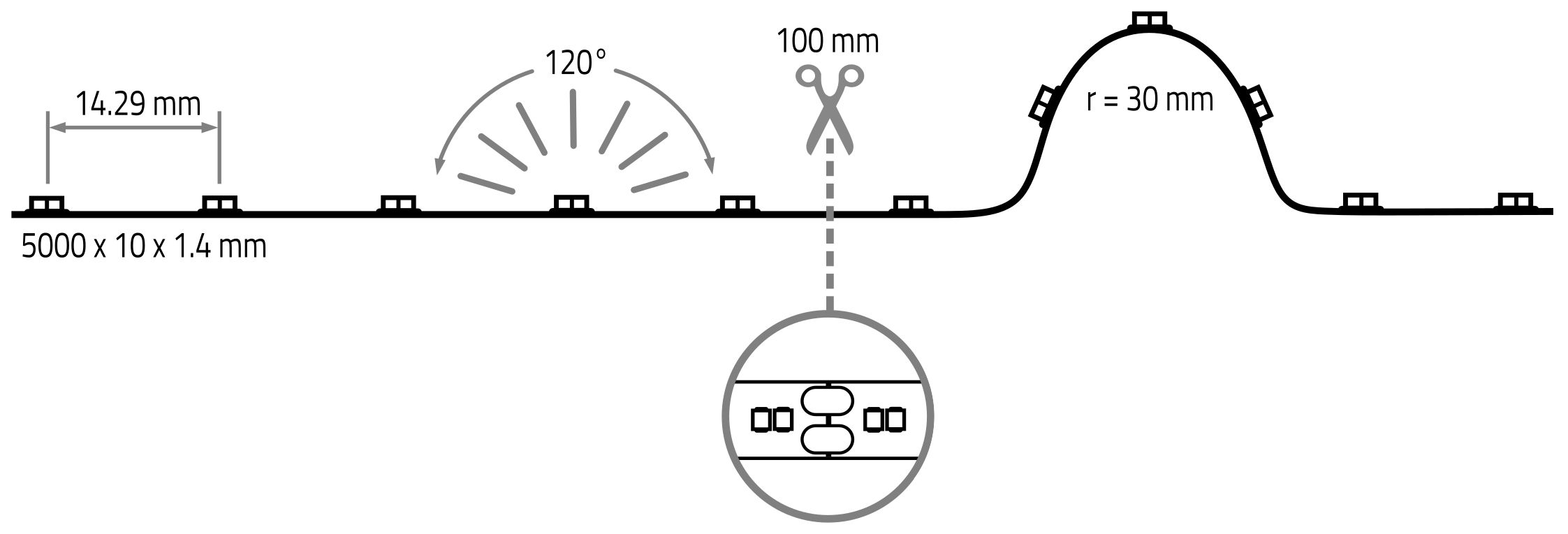

- can be seperated every 100 mm or 14 LEDs
- number of LEDs: 700
- LED pitch: 14.29 mm
- beam angle: 120°
- CRI: >80
- lumen per meter: 1317 lm
- Light colour: 3000 K - 1900 K (Dim To Warm)
- voltage: 24 V DC
- power per meter: 13 W
- lifetime L70B50: >= 50,000 h
- LxWxH in mm: 5,000 x 10 x 1.4
- Maximum length per connection: 5 meter. New connectors for greater length.
- Delivery contents: 5 meter roll
Technical Data
| BAR code: | 4012094790404 |
|---|---|
| Width: | 10 mm |
| Height: | 1 mm |
| Length: | 5000 mm |
| Unit Code: | piece |
| Customer discount group code: | ST |
| Lumen per fixture (lm): | 6585 lm |
| Lumen per LED (lm): | 9,41 lm |
| Current: | 2708 mA |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 140 |
| Cutting length in mm: | 100 mm |
| Power W/m: | 13 |
| Lumen per meter: | 1317 |
| Lumen per watt: | 101,31 |
| IP protection rating: | 20 |
| Power: | 65 W |
| Energy efficiency class: | EEK-Label_E |
| CRI: | 80 |
| Catalog color code: | weiss |
| Led color code: | 3000-1900K Dim to Warm |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 700 |
| L70: | 36000 |
| LebensdauerL70B50: | 50000 |
| Ecodesign: | light source |
| Psb: | 0,00 |
| Service life L90B10: | 39000 |
