Product number:
82208-V2
Flex.LEDStrip,24V,Innen,4000K
Product information "Flex.LEDStrip,24V,Innen,4000K"
- flexible LED Strip with self adhesive backside,
- for indoor use, IP20

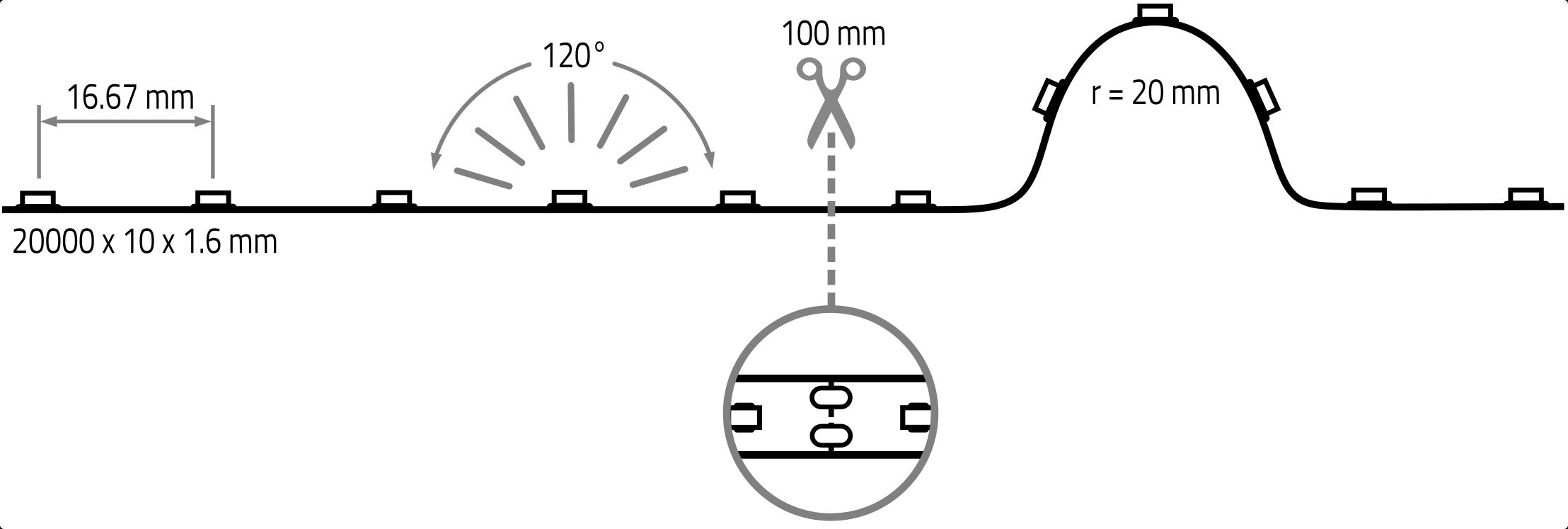

- Can be seperated every 100 mm or 6 LEDs
- Number of LEDs: 1.200
- LED pitch: 16.67 mm
- beam angle: 120°
- CRI: >90
- IC module on board (constant current module)
- Lumen per meter: 420 lm
- Voltage: 24V DC
- Power per meter: 5 W
- Lifetime L70B50: >= 50.000 h
- energy efficiency class: G
- LxWxH in mm: 20.000 x 10 x 1,6
- Easy installation with solderless connector (optional).
- Maximum length per connection: 20 meter. New connectors for greater length.
- Delivery contents: 20 meter reel with connection cable
Technical Data
| BAR code: | 4012094812083 |
|---|---|
| Width: | 10 mm |
| Height: | 1 mm |
| Length: | 20000 mm |
| Unit Code: | piece |
| Customer discount group code: | R2 |
| Lumen per fixture (lm): | 8400 lm |
| Lumen per LED (lm): | 7,00 lm |
| Current: | 4200 mA |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 60 |
| Cutting length in mm: | 100 mm |
| Power W/m: | 5 |
| Lumen per meter: | 420 |
| Lumen per watt: | 84 |
| IP protection rating: | 20 |
| Power: | 100 W |
| Energy efficiency class: | EEK-Label_G |
| CRI: | 90 |
| Catalog color code: | weiss |
| Led color code: | ca. 4000K neutralweiß |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 1200 |
| Re skus: | 70421,70422 |
| Auslaufartikel: | Yes |
| L70: | 36000 |
| LebensdauerL70B50: | 50000 |
| Ecodesign: | light source |
