CE
Disposal instructions according to 2012/19/EU
Only suitable for indoor installations
Parallel connection
Protection class III
RoHS
Very light - profile necessary
Product number:
84118
Flex.LEDStrip,24V,Innen,4000K CRI80
Product information "Flex.LEDStrip,24V,Innen,4000K CRI80"
- flexible LED Strip with self adhesive backside,
- for indoor use.

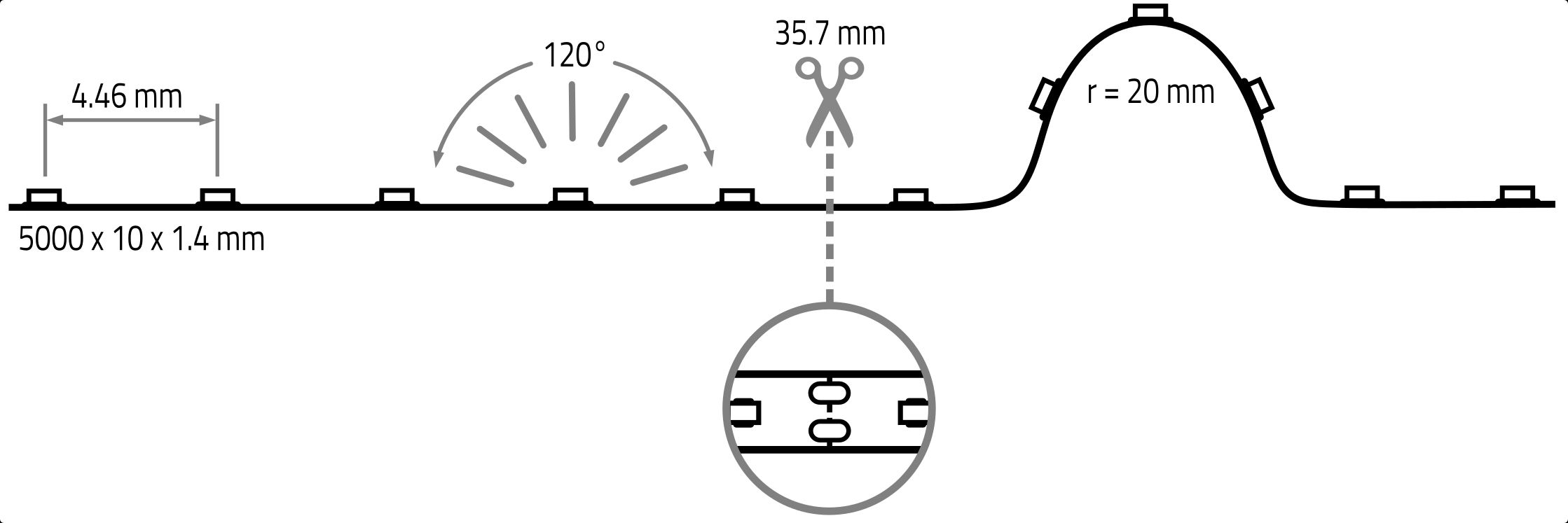

- can be seperated every 3.57 cm or 8 LEDs
- number of LEDs: 1120
- LED pitch: 4.46 mm
- beam angle: 120°
- CRI: >80
- lumen per meter: 3072 lm
- voltage: 24V DC
- power per meter: 23 W
- lifetime L70B50: >= 60,000 h
- lifetime L80: >= 54,000 h
- energy efficiency class: E
- LxWxH in mm: 5,000 x 10 x 1.4
- Caution: Do not operate strip without aluminium profile
- and adequate ventilation.
- Maximum length per connection: 5 meter. New connectors for greater length.
- Delivery contents: 5 meter roll with 300 mm connection cable
- Eligible for funding under the BEG funding programme 2021 - 2030
Technical Data
| BAR code: | 4012094841182 |
|---|---|
| Width: | 10 mm |
| Height: | 1 mm |
| Length: | 5000 mm |
| Unit Code: | piece |
| Customer discount group code: | ST |
| Lumen per fixture (lm): | 15360 lm |
| Lumen per LED (lm): | 13,47 lm |
| Current: | 4800 mA |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 224 |
| Cutting length in mm: | 35,71 mm |
| Power W/m: | 23 |
| Lumen per meter: | 3072 |
| Lumen per watt: | 133,57 |
| IP protection rating: | 20 |
| Power: | 115 W |
| Energy efficiency class: | EEK-Label_E |
| CRI: | 80 |
| Catalog color code: | weiss |
| Led color code: | ca. 4000K neutralweiß |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 1120 |
| L70: | 60000 |
| LebensdauerL70B50: | 60000 |
| Ecodesign: | light source |
| Psb: | 0,00 |
| Service life L90B10: | 46000 |
