Product number:
82415
Flex.LEDStrip,24V,Innen,3000K
Product information "Flex.LEDStrip,24V,Innen,3000K"
- flexible LED Strip with self adhesive backside,
- for indoor use.

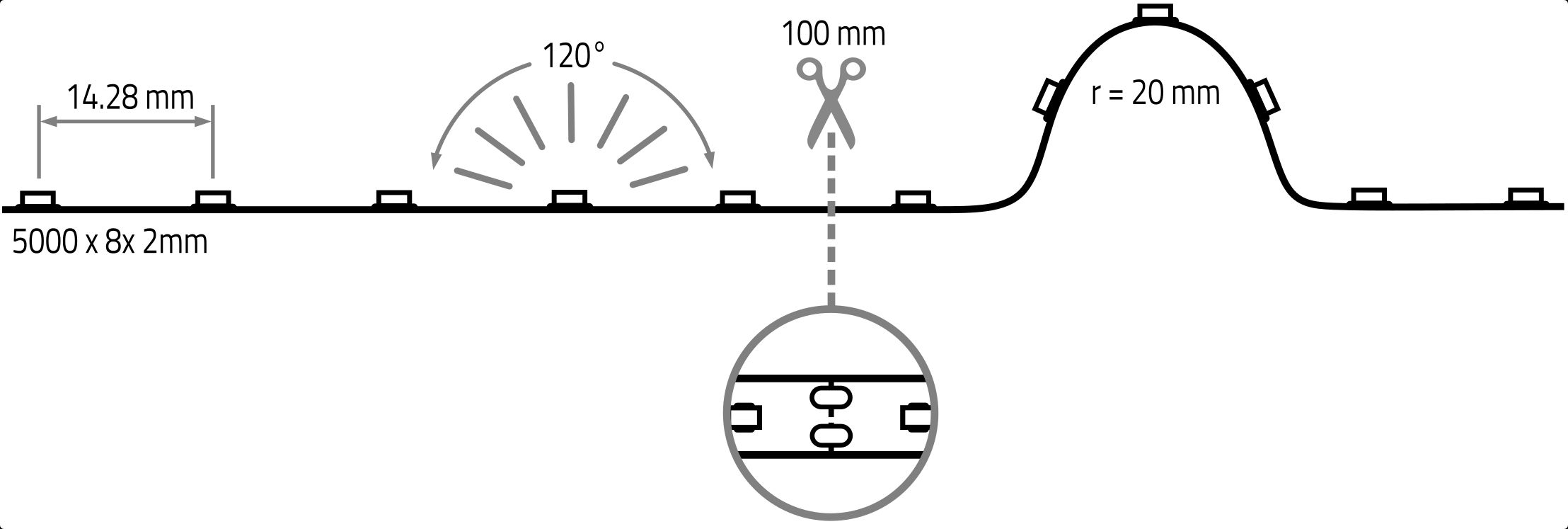

- Can be seperated every 100 mm or 7 LEDs
- Number of LEDs: 350
- LED pitch: 14.28 mm
- beam angle: 120°
- CRI: >90
- Lumen per meter: 410 lm
- Voltage: 24V DC
- Power per meter: 4.8 W
- Lifetime L70B50: >= 36.000 h
- energy efficiency class: G
- LxWxH in mm: 5.000 x 8 x 2
- Easy installation with solderless connector (optional).
- Maximum length per connection: 10 meter. New connectors for greater length.
- Delivery contents: 5 meter reel
Technical Data
| BAR code: | 4012094824154 |
|---|---|
| Width: | 8 mm |
| Height: | 2 mm |
| Length: | 5000 mm |
| Unit Code: | piece |
| Customer discount group code: | ST |
| Lumen per fixture (lm): | 2050 lm |
| Lumen per LED (lm): | 5,85 lm |
| Current: | 1000 mA |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 70 |
| Cutting length in mm: | 100 mm |
| Power W/m: | 4,8 |
| Lumen per meter: | 410 |
| Lumen per watt: | 85,41 |
| IP protection rating: | 20 |
| Power: | 24 W |
| Energy efficiency class: | EEK-Label_G |
| CRI: | 90 |
| Catalog color code: | weiss |
| Led color code: | ca. 3000K warmweiß |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 350 |
| L70: | 36000 |
| LebensdauerL70B50: | 36000 |
| Ecodesign: | light source |
| Psb: | 0,00 |
| Service life L90B10: | 13000 |
