CE
Disposal instructions according to 2012/19/EU
Only suitable for indoor installations
Parallel connection
Protection class III
RoHS
Very light - profile necessary
Product number:
84985
Flex.LEDStrip,24V,Innen,3000K CRI80
Product information "Flex.LEDStrip,24V,Innen,3000K CRI80"
- flexible LED Strip with self adhesive backside,
- for indoor use.

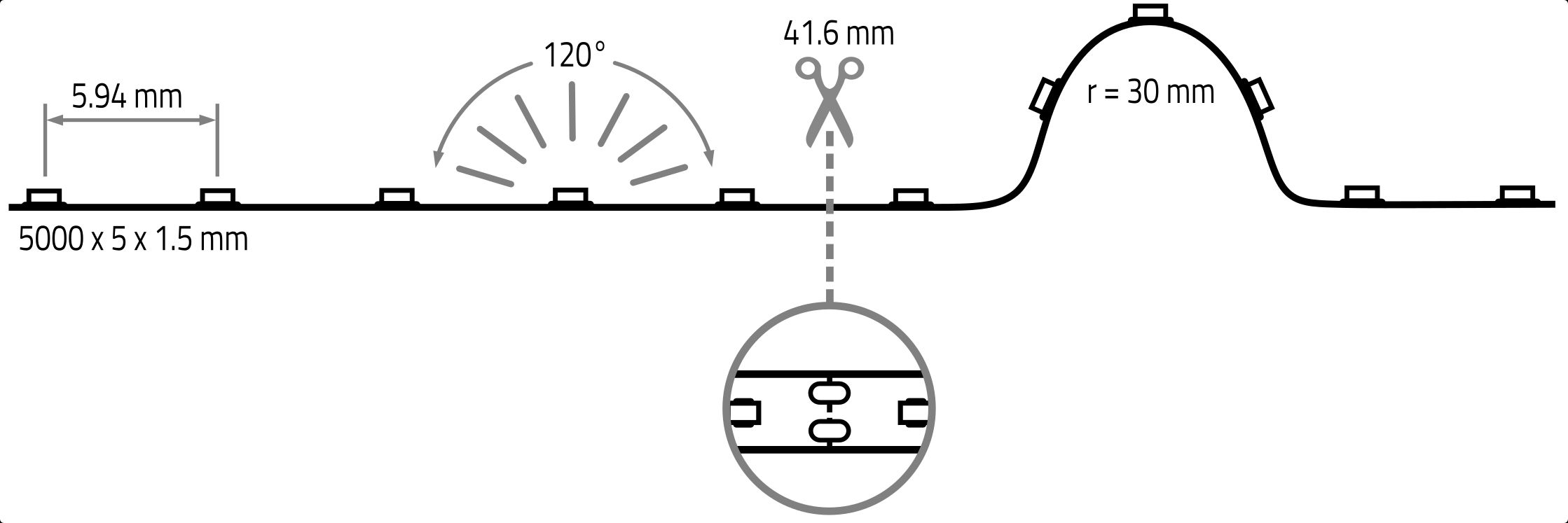

- can be seperated every 4.16 cm or 7 LEDs
- number of LEDs: 840
- LED pitch: 5.94 mm
- beam angle: 120°
- CRI: >80
- lumen per meter: 2044 lm
- voltage: 24V DC
- power per meter: 18 W
- lifetime L70B50: >= 60.000 h
- energy efficiency class: F
- LxWxH in mm: 5.000 x 5 x 1.5
- Caution: Do not operate strip without aluminium profile
- and adequate ventilation.
- Maximum length per connection: 5 meter. New connectors for greater length.
- Delivery contents: 5 meter roll
Technical Data
| BAR code: | 4012094849850 |
|---|---|
| Width: | 5 mm |
| Height: | 1 mm |
| Length: | 5000 mm |
| Unit Code: | piece |
| Customer discount group code: | SL |
| Lumen per fixture (lm): | 10220 lm |
| Lumen per LED (lm): | 12,16 lm |
| Current: | 3750 mA |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 168 |
| Cutting length in mm: | 41,6 mm |
| Power W/m: | 18 |
| Lumen per meter: | 2044 |
| Lumen per watt: | 113,55 |
| IP protection rating: | 20 |
| Power: | 90 W |
| Energy efficiency class: | EEK-Label_F |
| CRI: | 80 |
| Catalog color code: | weiss |
| Led color code: | ca. 3000K warmweiß |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Anzahl led: | 840 |
| Input voltage: | 24 |
| Auslaufartikel: | Yes |
| L70: | 54000 |
| LebensdauerL70B50: | 60000 |
| Ecodesign: | light source |
