CE
Disposal instructions according to 2012/19/EU
Only suitable for indoor installations
Parallel connection
Protection class III
RoHS
Product number:
84315
Flex.LEDStrip,24V,Innen,3000K CRI80
Product information "Flex.LEDStrip,24V,Innen,3000K CRI80"
- flexible LED Strip with self adhesive backside,
- for indoor use, IP20

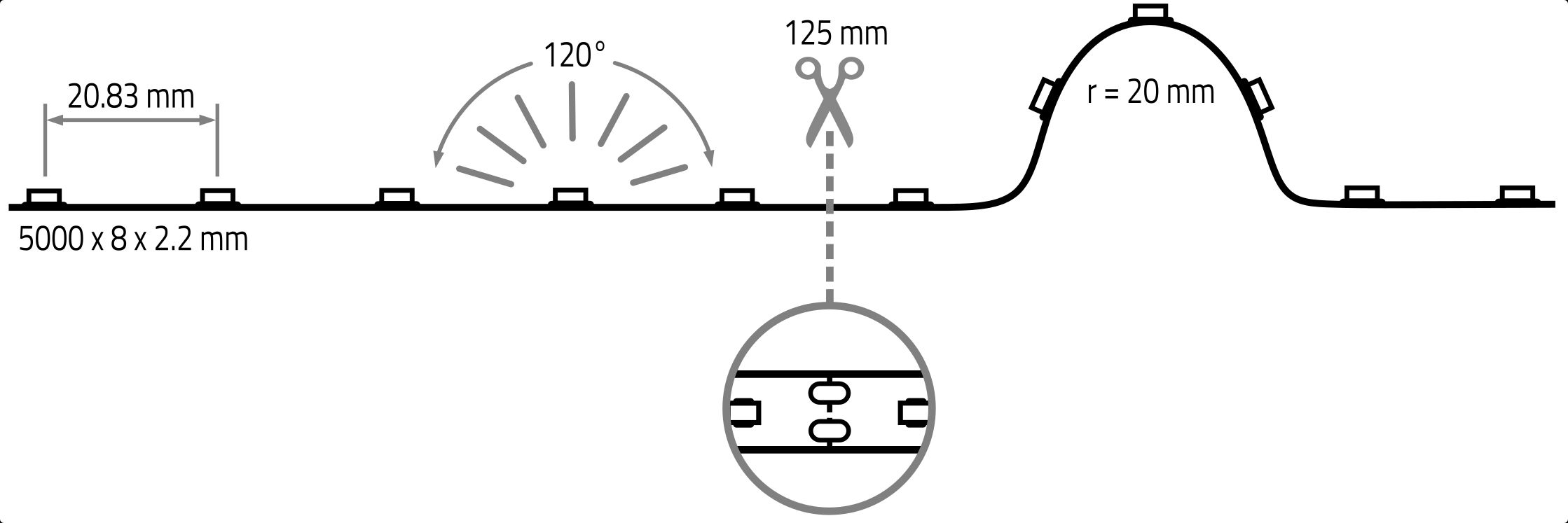

- Can be seperated every 125 mm or 6 LEDs
- Number of LEDs: 240
- LED pitch: 20.83 mm
- Beam angle: 120°
- CRI: >80
- Luminous flux per metre: 352 lm
- Voltage: 24 V DC
- Power per metre: 3.5 W
- Lifetime L70B50: >= 60,000 h
- Energy efficiency class: F
- LxWxH in mm: 5,000 x 8 x 2.2
- Easy installation with solderless connector (optional).
- Maximum length per connection: 5 meter. New connectors for greater length.
- Delivery contents: 5 meter reel, 5 in-feeder connector (profi),
- 1 direct connector (profi)
- SECONDLIFE ITEM -heavily discounted- only while stocks last!
Technical Data
| BAR code: | 4012094843155 |
|---|---|
| Width: | 8 mm |
| Height: | 2 mm |
| Length: | 5000 mm |
| Unit Code: | piece |
| Customer discount group code: | SL |
| Lumen per fixture (lm): | 1760 lm |
| Lumen per LED (lm): | 7,33 lm |
| Current: | 729 mA |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 48 |
| Cutting length in mm: | 125 mm |
| Power W/m: | 3,5 |
| Lumen per meter: | 352 |
| Lumen per watt: | 100,57 |
| IP protection rating: | 20 |
| Power: | 17,5 W |
| Energy efficiency class: | EEK-Label_F |
| CRI: | 80 |
| Catalog color code: | weiss |
| Led color code: | ca. 3000K warmweiß |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 240 |
| Re skus: | 70534,70538 |
| Auslaufartikel: | Yes |
| L70: | 60000 |
| LebensdauerL70B50: | 60000 |
| Ecodesign: | light source |
