Product number:
LDC1230MU
Flex.LEDStrip,24V,Innen,3000K 5/10/19W
€15.00
Product information "Flex.LEDStrip,24V,Innen,3000K 5/10/19W"
- flexible LED Strip with self adhesive backside,
- for indoor use, IP20

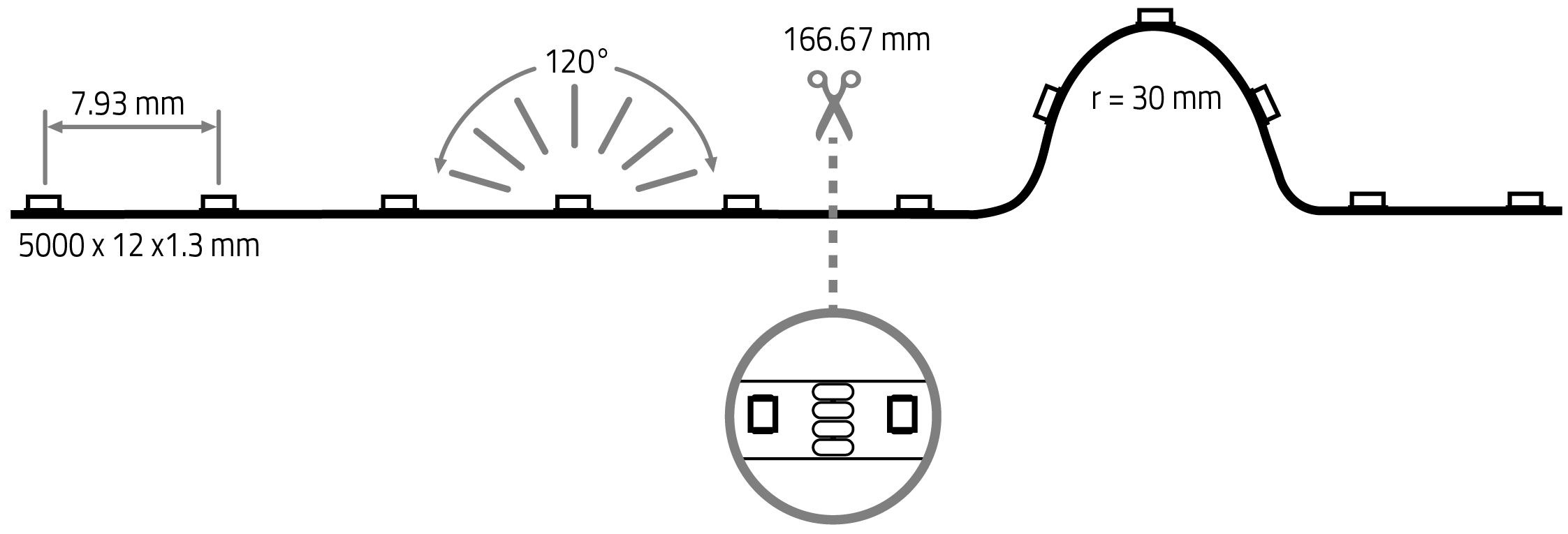

- can be seperated every 166.67 mm or 21 LEDs
- number of LEDs: 630
- LED pitch: 7,93 mm
- beam angle: 120°
- CRI: >80
- luminous flux per meter at 5 W: 670 lm
- luminous flux per meter at 10 W: 1170 lm
- luminous flux per meter at 19 W: 2075 lm
- voltage: 24V DC
- power per meter: 5/10/19 W
- lifespan L70B50: >= 60,000 h
- energy efficiency class: E
- LxWxH in mm: 5,000 x 12 x 1,3
- Easy installation with solderless connector (optional).
- Maximum length per connection: 5 meter. New connectors for greater length.
- Delivery contents: 5 meter reel with 300 mm connection cable
Technical Data
| BAR code: | 4251835712309 |
|---|---|
| Width: | 12 mm |
| Height: | 1 mm |
| Length: | 5000 mm |
| Unit Code: | piece |
| Customer discount group code: | R2 |
| Lumen per fixture (lm): | 10375 lm |
| Lumen per LED (lm): | 16,46 lm |
| Current: | 3958 mA |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 126 |
| Cutting length in mm: | 166,67 mm |
| Power W/m: | 19 |
| Lumen per meter: | 2075 |
| Lumen per watt: | 109,21 |
| IP protection rating: | 20 |
| Power: | 95 W |
| Energy efficiency class: | EEK-Label_E |
| CRI: | 80 |
| Led color code: | ca. 3000K warmweiß |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 630 |
| LebensdauerL70B50: | 60000 |
| Ecodesign: | light source |
| Psb: | 0,00 |
