CE
Disposal instructions according to 2012/19/EU
Low voltage correction
Only suitable for indoor installations
Parallel connection
Protection class III
RoHS
Product number:
82863
Flex.LEDStrip,24V,Innen,2700K CRI90
Product information "Flex.LEDStrip,24V,Innen,2700K CRI90"
- flexible LED Strip with self adhesive backside,
- for indoor use.

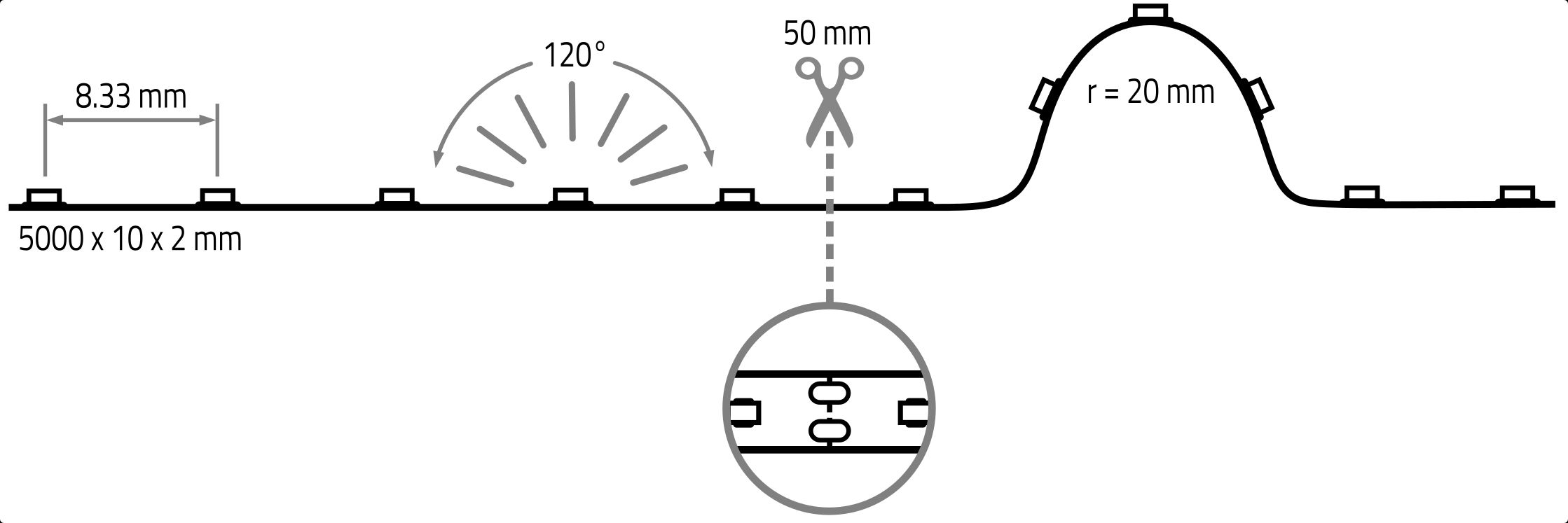

- can be seperated every 5 cm or 6 LEDs
- number of LEDs: 600
- LED pitch: 8,33 mm
- beam angle: 120°
- CRI: >90
- IC module on board (constant current module)
- lumen per meter: 834 lm
- voltage: 24V DC
- power per meter: 12 W
- lifetime L70: >= 36.000h
- LxWxH in mm: 5.000 x 10 x 2
- Easy installation with solderless connector (optional).
- Maximum length per connection: 10 meter. New connectors for greater length.
- Delivery contents: 5 meter roll
- SECONDLIFE ITEM -heavily discounted- only while stocks last!
Technical Data
| BAR code: | 4012094828633 |
|---|---|
| Width: | 10 mm |
| Height: | 2 mm |
| Length: | 5000 mm |
| Unit Code: | piece |
| Customer discount group code: | SL |
| Lumen per fixture (lm): | 4170 lm |
| Lumen per LED (lm): | 6,95 lm |
| Current: | 2500 mA |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 120 |
| Cutting length in mm: | 50 mm |
| Power W/m: | 12 |
| Lumen per meter: | 834 |
| Lumen per watt: | 69,5 |
| IP protection rating: | 20 |
| Power: | 60 W |
| CRI: | 90 |
| Catalog color code: | weiss |
| Led color code: | ca. 2700K ultra warmweiß |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 600 |
| Re skus: | 70421,70422,70531,70532 |
| Auslaufartikel: | Yes |
| L70: | 36000 |
| LebensdauerL70B50: | 36000 |
| Ecodesign: | light source |
