CE
Parallel connection
Protection class III
RoHS
Product number:
86272
Flex.LEDStrip,24V,Blau 5M 53W

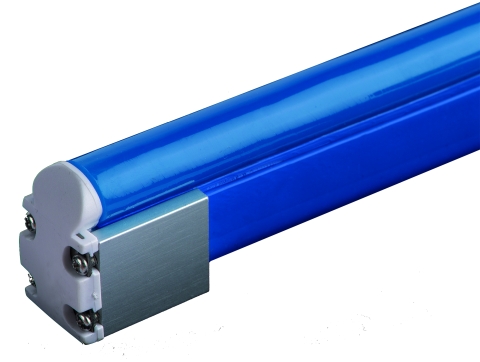

Product information "Flex.LEDStrip,24V,Blau 5M 53W"
- Vardaflex Neon tube Colour IP68
- Flexible LED strip sealed in UV, chlorine, salt water and solvent-resistant PCV,
- for indoor and outdoor use
- 10.6W (red 6,5), 60 LED, 135 lm (green per metre)
- Cuttable every 100 mm or 6 LEDs, LED spacing: 16.67mm
- (red: every 16,7 cm or 10 LEDs)
- Easy installation due to solder-free connectors.
- Maximum lengths per connection: 20 metres
- Bending radius: 6 cm
- Scope of delivery: 5 metre roll, in-feeder connector and an
- end cap was provided.
- Up to 20 metres installable withozt any interruption
- (feed-in both sides upwards of 10 metres).
- Can be fed-in anew - thus installable praticically endlessly.
- Other lenghts available on request.
- Temperature range: -20 to +45°C
- Processing temperature: 0 - 45 °C
Technical Data
| BAR code: | 4012094862729 |
|---|---|
| Width: | 11 mm |
| Height: | 29 mm |
| Length: | 5000 mm |
| Unit Code: | piece |
| Customer discount group code: | SL |
| Lumen per fixture (lm): | 50 lm |
| Lumen per LED (lm): | 0,17 lm |
| Current: | 2208 mA |
| Temperature range: | -10 - 45 |
| LEDs per meter: | 60 |
| Cutting length in mm: | 100 mm |
| Power W/m: | 10,6 |
| Lumen per meter: | 10 |
| Lumen per watt: | 0,94 |
| IP protection rating: | 68 |
| Power: | 53 W |
| Catalog color code: | blau |
| Led color code: | Blau |
| Leuchte: | including LED |
| Beam angle: | 270 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 300 |
| Gehaeuse code: | Kunststoff |
| Re skus: | 68314,80474,85376 |
| Auslaufartikel: | Yes |
| Ecodesign: | not relevant |
