Product number:
82478
Flex.LEDStrip,24V,9,6W/m,IP20,4000K
Product information "Flex.LEDStrip,24V,9,6W/m,IP20,4000K"
- flexible LED Strip with self adhesive backside,
- for indoor use.

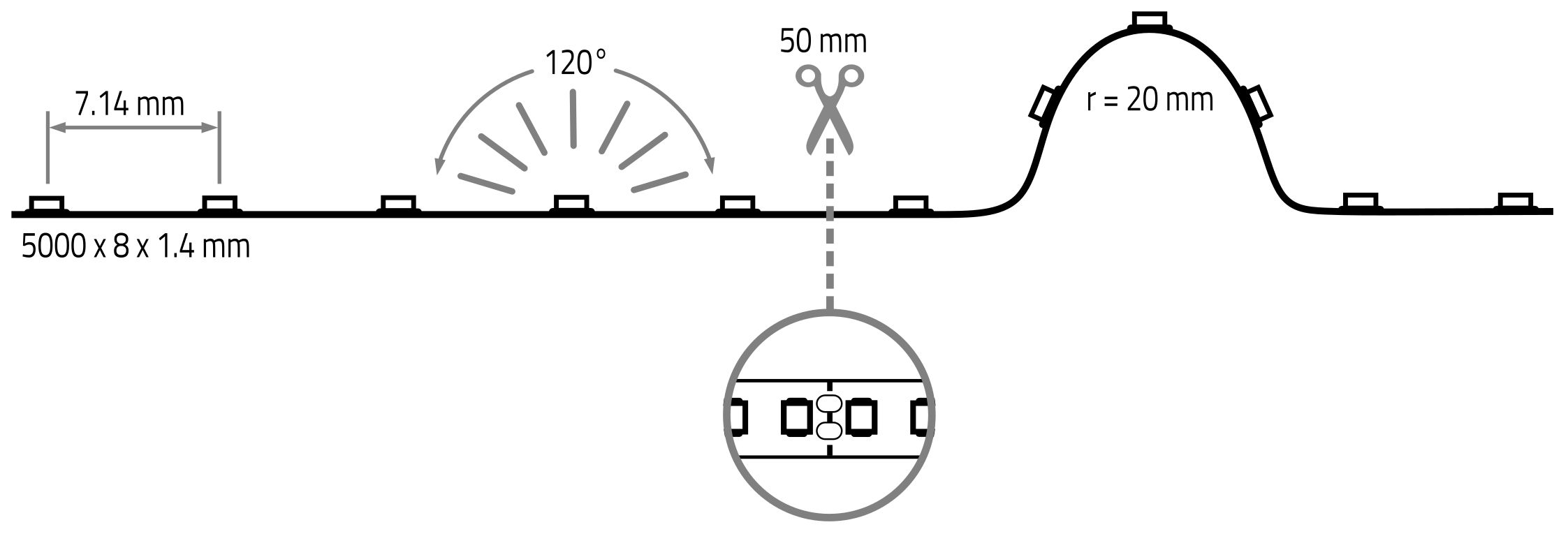

- can be seperated every 50 mm or 7 LEDs
- number of LEDs: 700
- LED pitch: 7.14 mm
- beam angle: 120°
- CRI: >90
- luminous flux per meter: 934 lm
- voltage: 24V DC
- power per meter: 9.6 W
- lifespan L70B50: >= 50,000 h
- energy efficiency class: F
- LxWxH in mm: 5.000 x 8 x 1.4
- Easy installation with solderless connector (optional).
- Maximum length per connection: 5 meter. New connectors for greater length.
- Delivery contents: 5 meter roll with 300 mm connection cable
Technical Data
| BAR code: | 4012094824789 |
|---|---|
| Width: | 8 mm |
| Height: | 1 mm |
| Length: | 5000 mm |
| Unit Code: | piece |
| Customer discount group code: | ST |
| Lumen per fixture (lm): | 4670 lm |
| Lumen per LED (lm): | 6,67 lm |
| Current: | 2000 mA |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 140 |
| Cutting length in mm: | 50 mm |
| Power W/m: | 9,6 |
| Lumen per meter: | 934 |
| Lumen per watt: | 97,3 |
| IP protection rating: | 20 |
| Power: | 48 W |
| Energy efficiency class: | EEK-Label_F |
| CRI: | 90 |
| Catalog color code: | weiss |
| Led color code: | ca. 4000K neutralweiß |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 700 |
| Re skus: | 82100,82101 |
| L70: | 36000 |
| LebensdauerL70B50: | 50000 |
| Ecodesign: | light source |
| Psb: | 0,00 |
| Service life L90B10: | 30000 |
