Product number:
79477
Flex.LEDStrip,24V,8,8W/m.,Innen,2700K CRI80
Product information "Flex.LEDStrip,24V,8,8W/m.,Innen,2700K CRI80"
- flexible LED Strip with self adhesive backside,
- for indoor use, IP20

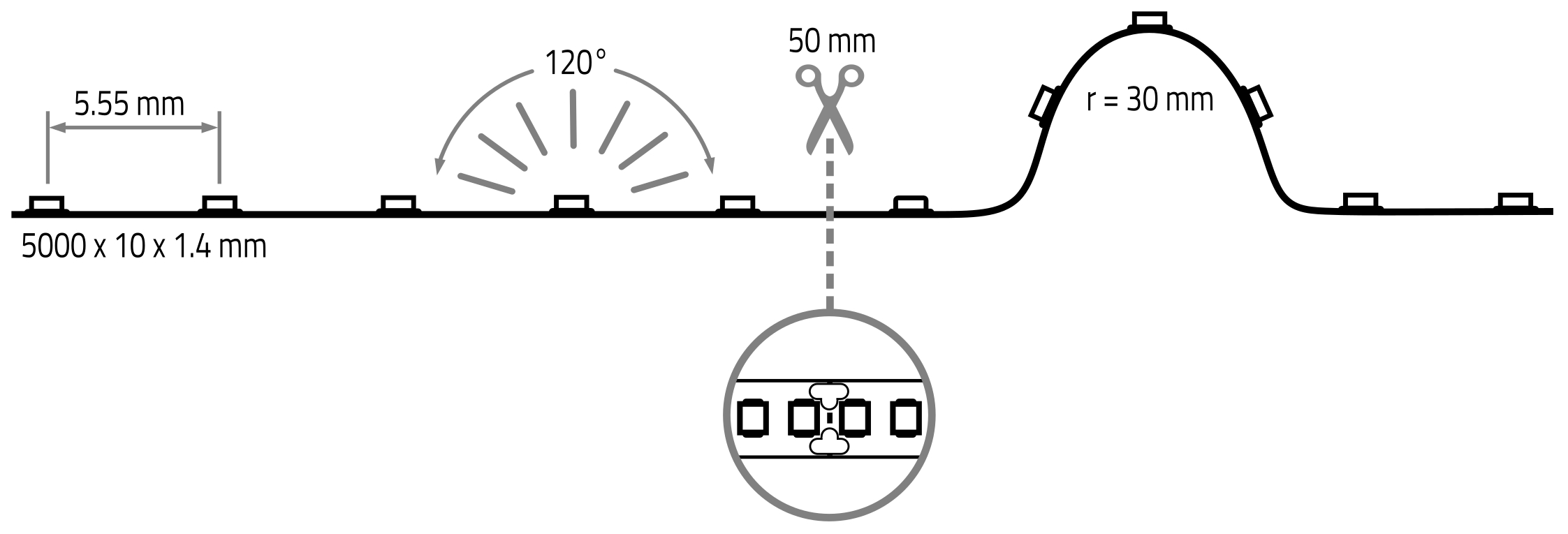

- can be seperated every 50 mm or 9 LEDs
- number of LEDs: 900
- LED pitch: 5.55 mm
- beam angle: 120°
- CRI: >80
- lumen per meter: 1467 lm
- voltage: 24V DC
- power per meter: 8.8 W
- lifespan L70B50: >= 54,000 h
- energy efficiency class: C
- LxWxH in mm: 5,000 x 10 x 1.4
- Maximum length per connection: 5 meter. New connectors for greater length.
- Delivery contents: 5 meter roll with 300 mm connection cable
Technical Data
| BAR code: | 4012094794778 |
|---|---|
| Width: | 10 mm |
| Height: | 1 mm |
| Length: | 5000 mm |
| Unit Code: | piece |
| Customer discount group code: | ST |
| Lumen per fixture (lm): | 7335 lm |
| Lumen per LED (lm): | 8,15 lm |
| Current: | 1833 mA |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 180 |
| Cutting length in mm: | 50 mm |
| Power W/m: | 8,8 |
| Lumen per meter: | 1467 |
| Lumen per watt: | 166,7 |
| IP protection rating: | 20 |
| Power: | 44 W |
| Energy efficiency class: | EEK-Label_C |
| CRI: | 80 |
| Catalog color code: | weiss |
| Led color code: | ca. 2700K ultra warmweiß |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 900 |
| Re skus: | 70321,70322 |
| L70: | 50000 |
| LebensdauerL70B50: | 54000 |
| Ecodesign: | light source |
| Psb: | 0,00 |
| Service life L90B10: | 39000 |
