CE
Disposal instructions according to 2012/19/EU
Only suitable for indoor installations
Parallel connection
Protection class III
REACH
RoHS
Product number:
84365
Flex.LEDStrip,24V,6W/m,Innen,3000K
Product information "Flex.LEDStrip,24V,6W/m,Innen,3000K"
- flexible LED Strip with self adhesive backside,
- for indoor use, IP20

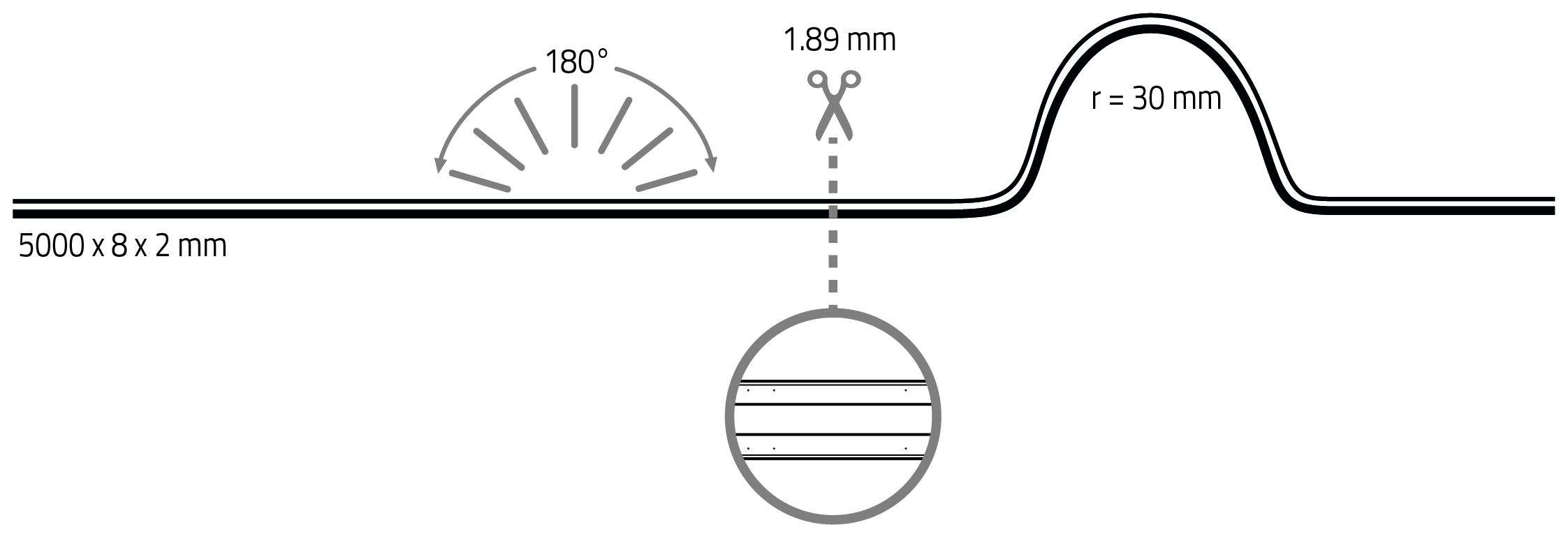

- can be seperated everywhere
- number of LEDs: 2640
- LED pitch: 1.89 mm
- beam angle: 180°
- CRI: >80
- luminous flux per meter: 405 lm
- voltage: 24V DC
- power per meter: 6 W
- lifespan L70B50: >= 70.000 h
- energy efficiency class: G
- LxWxH in mm: 5.000 x 8 x 2
- Easy installation with solderless connector (optional).
- Maximum length per connection: 5 meter. New connectors for greater length.
- Delivery contents: 5 meter roll with 300 mm connection cable
Technical Data
| BAR code: | 4012094843650 |
|---|---|
| Width: | 8 mm |
| Height: | 2 mm |
| Length: | 5000 mm |
| Unit Code: | piece |
| Customer discount group code: | ST |
| Lumen per fixture (lm): | 2025 lm |
| Lumen per LED (lm): | 0,77 lm |
| Current: | 1250 mA |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 528 |
| Cutting length in mm: | 1,89 mm |
| Power W/m: | 6 |
| Lumen per meter: | 405 |
| Lumen per watt: | 67,5 |
| IP protection rating: | 20 |
| Power: | 30 W |
| Energy efficiency class: | EEK-Label_G |
| CRI: | 80 |
| Catalog color code: | weiss |
| Led color code: | ca. 3000K warmweiß |
| Leuchte: | including LED |
| Beam angle: | 180 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 2640 |
| Re skus: | 70324,70328 |
| L70: | 54000 |
| LebensdauerL70B50: | 70000 |
| Ecodesign: | light source |
| Psb: | 0,00 |
| Service life L90B10: | 20000 |
