CE
Disposal instructions according to 2012/19/EU
Only suitable for indoor installations
Parallel connection
Protection class III
RoHS
Very light - profile necessary
Product number:
82457
Flex.LEDStrip,24V,19,2W/m,IP20,2700K
Product information "Flex.LEDStrip,24V,19,2W/m,IP20,2700K"
- flexible LED Strip with self adhesive backside,
- for indoor use.

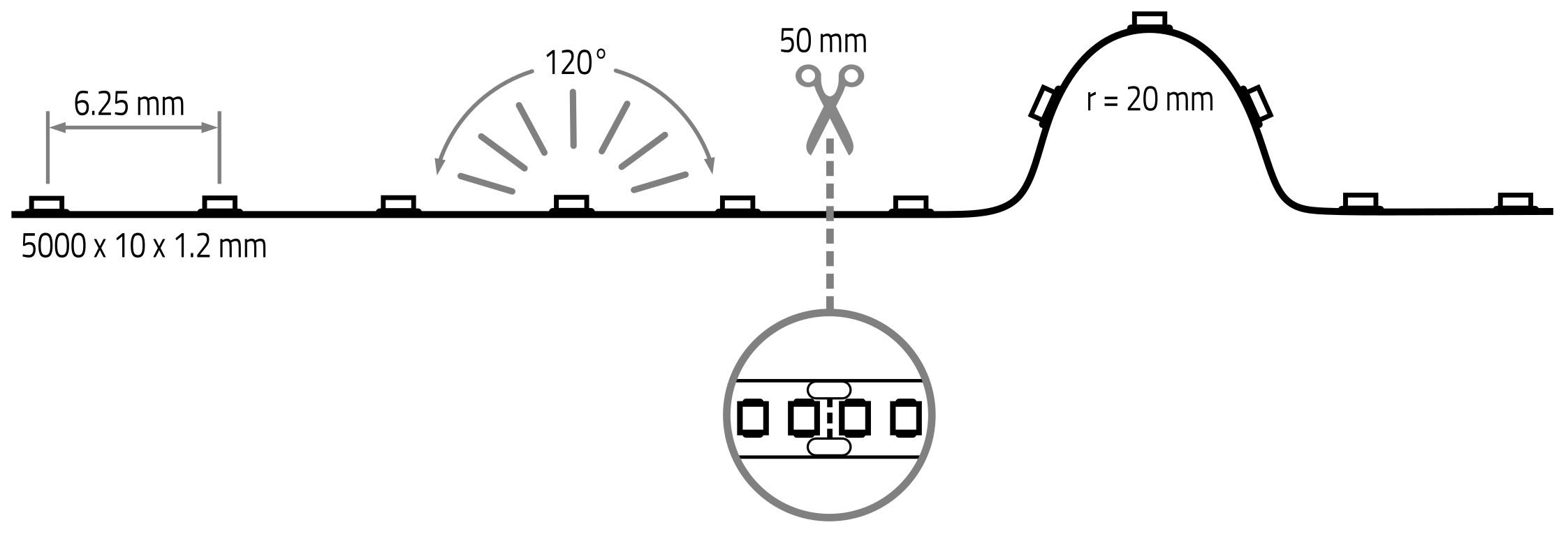

- can be seperated every 50 mm or 8 LEDs
- number of LEDs: 800
- LED pitch: 6.25 mm
- beam angle: 120°
- CRI: >90
- luminous flux per meter: 2026 lm
- voltage: 24 V DC
- power per meter: 19.2 W
- lifespan L70B50: >= 50,000 h
- energy efficiency class: E
- LxWxH in mm: 5.000 x 10 x 1.2
- Caution: Do not operate strip without aluminium profile
- and adequate ventilation.
- Maximum length per connection: 5 meter. New connectors for greater length.
- Delivery contents: 5 meter roll with 300 mm connection cable
Technical Data
| BAR code: | 4012094824574 |
|---|---|
| Width: | 10 mm |
| Height: | 1 mm |
| Length: | 5000 mm |
| Unit Code: | piece |
| Customer discount group code: | ST |
| Lumen per fixture (lm): | 10130 lm |
| Lumen per LED (lm): | 12,66 lm |
| Current: | 4000 mA |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 160 |
| Cutting length in mm: | 50 mm |
| Power W/m: | 19,2 |
| Lumen per meter: | 2026 |
| Lumen per watt: | 105,52 |
| IP protection rating: | 20 |
| Power: | 96 W |
| Energy efficiency class: | EEK-Label_E |
| CRI: | 90 |
| Catalog color code: | weiss |
| Led color code: | ca. 2700K ultra warmweiß |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 800 |
| Re skus: | 70535,70536 |
| L70: | 36000 |
| LebensdauerL70B50: | 50000 |
| Ecodesign: | light source |
| Psb: | 0,00 |
| Service life L90B10: | 28000 |
