Product number:
84338
Flex.LEDStrip,24V,10,5W/m,Innen,4000K
Product information "Flex.LEDStrip,24V,10,5W/m,Innen,4000K"
- flexible LED Strip with self adhesive backside,
- for indoor use, IP20

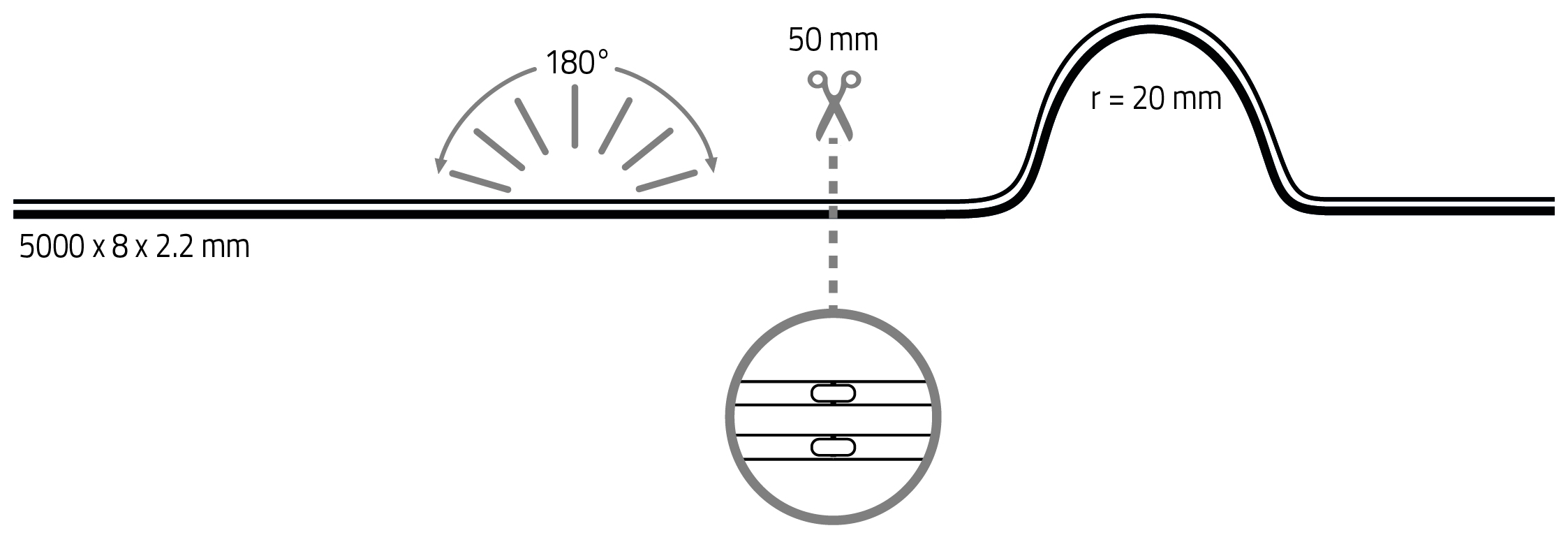

- can be seperated every 50 mm or 24 LEDs
- number of LEDs: 2400
- LED pitch: 2.08 mm
- beam angle: 180°
- CRI: >90
- luminous flux per metre: 1065 lm
- voltage: 24 V DC
- power per metre: 10,5 W
- lifespan L70B50: >= 54,000 h
- Energy efficiency class: F
- LxWxH in mm: 5,000 x 8 x 2.2
- Easy installation with solderless connector (optional).
- Maximum length per connection: 5 meter. New connectors for greater length.
- Delivery contents: 5 meter roll with 300 mm connection cable
Technical Data
| BAR code: | 4012094843384 |
|---|---|
| Width: | 8 mm |
| Height: | 2 mm |
| Length: | 5000 mm |
| Unit Code: | piece |
| Customer discount group code: | ST |
| Lumen per fixture (lm): | 5325 lm |
| Lumen per LED (lm): | 2,22 lm |
| Current: | 2187 mA |
| Temperature range: | -20 - 40 |
| LEDs per meter: | 480 |
| Cutting length in mm: | 50 mm |
| Power W/m: | 10,5 |
| Lumen per meter: | 1065 |
| Lumen per watt: | 101,43 |
| IP protection rating: | 20 |
| Power: | 52,5 W |
| Energy efficiency class: | EEK-Label_F |
| CRI: | 90 |
| Catalog color code: | weiss |
| Led color code: | ca. 4000K neutralweiß |
| Leuchte: | including LED |
| Beam angle: | 180 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 2400 |
| L70: | 35000 |
| LebensdauerL70B50: | 54000 |
| Ecodesign: | light source |
| Psb: | 0,00 |
| Service life L90B10: | 20000 |
