CE
Disposal instructions according to 2012/19/EU
Only suitable for indoor installations
Parallel connection
Protection class III
RoHS
Product number:
36207

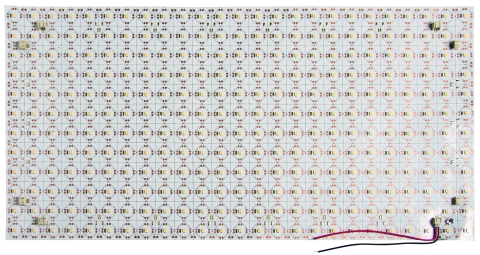

Flex.LEDSheet,24V,Innen,2700K CRI80
Product information "Flex.LEDSheet,24V,Innen,2700K CRI80"
- for indoor use, IP20
- can be seperated every 2 cm or 1 LED
- number of LEDs: 300
- LED pitch: 20 mm
- min. bending diameter: 50 mm
- beam angle: 120°
- CRI: >80
- luminous flux: 6765 lm
- voltage: 24V DC
- power: 69 W
- power per LED: 0.23 W
- lifetime L70: >= 40.000 h
- LxWxH in mm: 500 x 240 x 6.5
- Maximum amount per connection: 6 x VARDAflex Wallpaper Plus
- Delivery contents: 1x flexible circuit board, 2x connector
- SECONDLIFE ITEM -heavily discounted- only while stocks last!
Technical Data
| BAR code: | 4012094362076 |
|---|---|
| Width: | 240 mm |
| Height: | 6 mm |
| Length: | 500 mm |
| Unit Code: | piece |
| Customer discount group code: | SL |
| Lumen per fixture (lm): | 6765 lm |
| Lumen per LED (lm): | 22,55 lm |
| Current: | 2875 mA |
| Temperature range: | -20 - 45 |
| Cutting length in mm: | 20 mm |
| Lumen per watt: | 98,04 |
| IP protection rating: | 20 |
| Power: | 69 W |
| CRI: | 80 |
| Led color code: | ca. 2700K ultra warmweiß |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 300 |
| Gehaeuse code: | Kunststoff |
| Re skus: | 80473,86999 |
| Auslaufartikel: | Yes |
| L70: | 40000 |
| Ecodesign: | light source |
