Product number:
36107

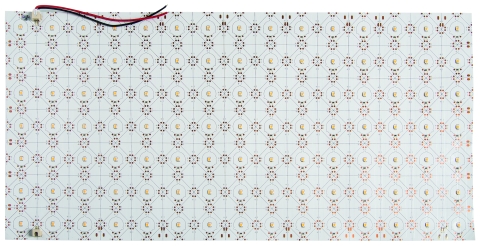

Flex.LEDSheet,24V,Innen,2700K CRI80
Product information "Flex.LEDSheet,24V,Innen,2700K CRI80"
- for indoor use, IP20
- can be seperated every 3.33 cm or 1 LED
- number of LEDs: 105
- LED pitch: 33.3 mm
- min. bending diameter: 50 mm
- beam angle: 120°
- CRI: >80
- luminous flux: 3537 lm
- voltage: 24V DC
- power: 32 W
- power per LED: 0.3 W
- lifetime L70: >= 50.000 h
- LxWxH in mm: 500 x 235 x 6.5
- Maximum amount per connection: 6 x VARDAflex Wallpaper
- Delivery contents: 1x flexible circuit board, 2x connector
- SECONDLIFE ITEM -heavily discounted- only while stocks last!
Technical Data
| BAR code: | 4012094361079 |
|---|---|
| Width: | 235 mm |
| Height: | 6 mm |
| Length: | 500 mm |
| Unit Code: | piece |
| Customer discount group code: | SL |
| Lumen per fixture (lm): | 3021 lm |
| Lumen per LED (lm): | 28,77 lm |
| Current: | 1333 mA |
| Temperature range: | -20 - 45 |
| Cutting length in mm: | 33,33 mm |
| Lumen per watt: | 94,4 |
| IP protection rating: | 20 |
| Power: | 32 W |
| CRI: | 80 |
| Led color code: | ca. 2700K ultra warmweiß |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 105 |
| Gehaeuse code: | Kunststoff |
| Re skus: | 80473,85271,86999 |
| Auslaufartikel: | Yes |
| L70: | 50000 |
| Ecodesign: | light source |
