CE
Only suitable for indoor installations
Parallel connection
Protection class III
RoHS
Very light - profile necessary
Product number:
86424
Flex.LEDLeiste,Innen,6500K 24V

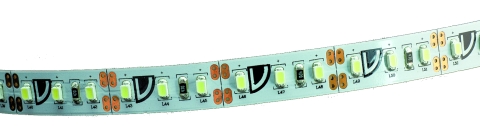

Product information "Flex.LEDLeiste,Innen,6500K 24V"
- flexible LED Strip with self adhesive backside,
- for indoor use.
- can be seperated every 5 cm or 6 LEDs
- number of LEDs: 600
- LED pitch: 8.33 mm
- beam angle: 120°
- CRI: >95
- lumen per meter: 1356 lm
- voltage: 24V DC
- power per meter: 19,2 W
- lifetime L70: >= 36.000 h
- energy efficiency class: A
- LxWxH in mm: 5.000 x 10 x 2
- Caution: Do not operate strip without aluminium profile
- and adequate ventilation.
- Easy installation with solderless connector (optional).
- Maximum length per connection: 8 meter. New connectors for greater length.
- Delivery contents: 5 meter roll, 5 power supply connector, 1 direct connector
Technical Data
| BAR code: | 4012094864242 |
|---|---|
| Width: | 10 mm |
| Height: | 2 mm |
| Length: | 5000 mm |
| Unit Code: | piece |
| Customer discount group code: | R2 |
| Lumen per fixture (lm): | 6780 lm |
| Lumen per LED (lm): | 11,30 lm |
| Current: | 4000 mA |
| LEDs per meter: | 120 |
| Cutting length in mm: | 50 mm |
| Power W/m: | 19,2 |
| Lumen per meter: | 1356 |
| Lumen per watt: | 70,63 |
| IP protection rating: | 20 |
| Power: | 96 W |
| CRI: | 95 |
| Led color code: | ca. 6500K kaltweiß |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 600 |
| Gehaeuse code: | Kunststoff |
| Re skus: | 70421,70422,70432,70531,70532 |
| Auslaufartikel: | Yes |
| L70: | 36000 |
| Ecodesign: | not assigned |
