CE
Disposal instructions according to 2012/19/EU
Only suitable for indoor installations
Parallel connection
Protection class III
RoHS
Very light - profile necessary
Product number:
82518
Flex.LEDLeiste,24V,Innen,RGB/BZ/W
Product information "Flex.LEDLeiste,24V,Innen,RGB/BZ/W"
- flexible LED Strip with self adhesive backside,
- for indoor use.

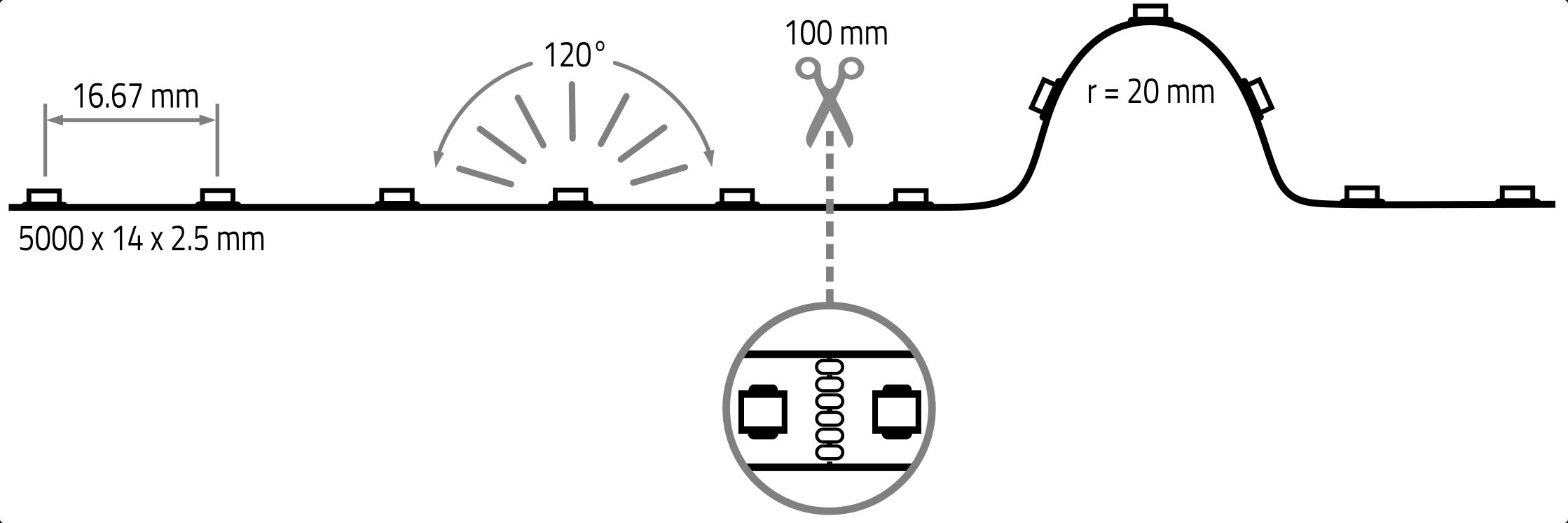

- Can be seperated every 10 cm or 6 LEDs
- Number of LEDs: 300
- LED pitch: 16.67 mm
- beam angle: 120°
- CRI: >80
- luminous flux per meter: 1502 lm
- luminous flux 2400K+6500K per meter: 410 lm
- Voltage: 24V DC
- Power per meter: 24 W
- Lifetime L70B50: >= 36.000 h
- energy efficiency class: G
- LxWxH in mm: 5.000 x 14 x 2.5
- Caution: Do not operate strip without aluminium profile
- and adequate ventilation.
- Maximum length per connection: 5 meter. New connectors for greater length.
- Delivery contents: 5 meter roll
Technical Data
| BAR code: | 4012094825182 |
|---|---|
| Width: | 14 mm |
| Height: | 2 mm |
| Length: | 5000 mm |
| Unit Code: | piece |
| Customer discount group code: | SL |
| Lumen per fixture (lm): | 7510 lm |
| Lumen per LED (lm): | 25,04 lm |
| Current: | 5000 mA |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 60 |
| Cutting length in mm: | 100 mm |
| Power W/m: | 24 |
| Lumen per meter: | 1502 |
| Lumen per watt: | 62,58 |
| IP protection rating: | 20 |
| Power: | 120 W |
| Energy efficiency class: | EEK-Label_G |
| CRI: | 80 |
| Catalog color code: | weiss |
| Led color code: | RGBWWW 6500-2400K |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Anzahl led: | 300 |
| Input voltage: | 24 |
| Auslaufartikel: | Yes |
| L70: | 36000 |
| LebensdauerL70B50: | 36000 |
| Ecodesign: | light source |
| Service life L90B10: | 30000 |
