Product number:
88561
Flex.LED im Schlauch,IP68,Gelb
Product information "Flex.LED im Schlauch,IP68,Gelb"
- Flexible LED Strips in a Silicone Tubing
- for Indoor and Outdoor Use

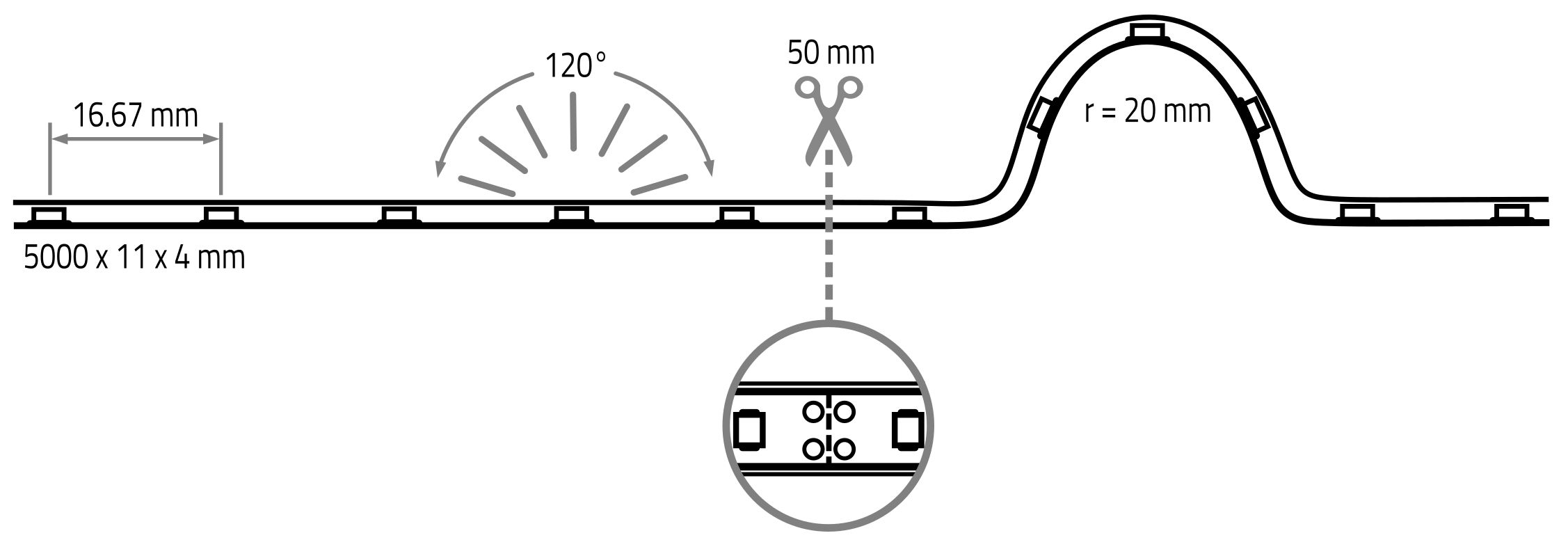

- Separable Every 5 cm or 3 LEDs
- (24 Volt: Separable Every 10 cm or 6 LEDs)
- LED Distance: Single Color 16 mm (300 LED)
- Easy Installation with Solder-less Plug Connections.
- Maximum Length per Connection: 10 Meter. New Connectors for Greater Lengths.
- Delivery Contents: 5 Meter Roll, 5 Power Supply Connector, 1 Direct Connector,
- 1 Connection Tube, 30 Mounting Brackets, 2 End Caps, 2
- Power Supply Connecting Caps
- Sorted and Stored by Binning Code
- SECONDLIFE ITEM -heavily discounted- only while stocks last!
Technical Data
| BAR code: | 4012094885612 |
|---|---|
| Width: | 11 mm |
| Height: | 4 mm |
| Length: | 5000 mm |
| Unit Code: | piece |
| Customer discount group code: | SL |
| Lumen per fixture (lm): | 230 lm |
| Lumen per LED (lm): | 0,76 lm |
| Current: | 2000 mA |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 60 |
| Cutting length in mm: | 50 mm |
| Power W/m: | 4,8 |
| Lumen per meter: | 46 |
| Lumen per watt: | 9,58 |
| IP protection rating: | 68 |
| Power: | 24 W |
| CRI: | 80 |
| Led color code: | Gelb/Amber |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 12 V |
| Anzahl led: | 300 |
| Gehaeuse code: | Kunststoff |
| Re skus: | 68306,80474,85468 |
| Auslaufartikel: | Yes |
| L70: | 36000 |
| LebensdauerL70B50: | 63000 |
| Ecodesign: | not relevant |
| Psb: | 0,00 |
| Service life L90B10: | 35000 |
