CE
Disposal instructions according to 2012/19/EU
Only suitable for indoor installations
Parallel connection
Protection class III
RoHS
Product number:
86575
Flex.LED Strip,24V,Innen,RGB
Product information "Flex.LED Strip,24V,Innen,RGB"
- flexible LED Strip with self adhesive backside,
- for indoor use.

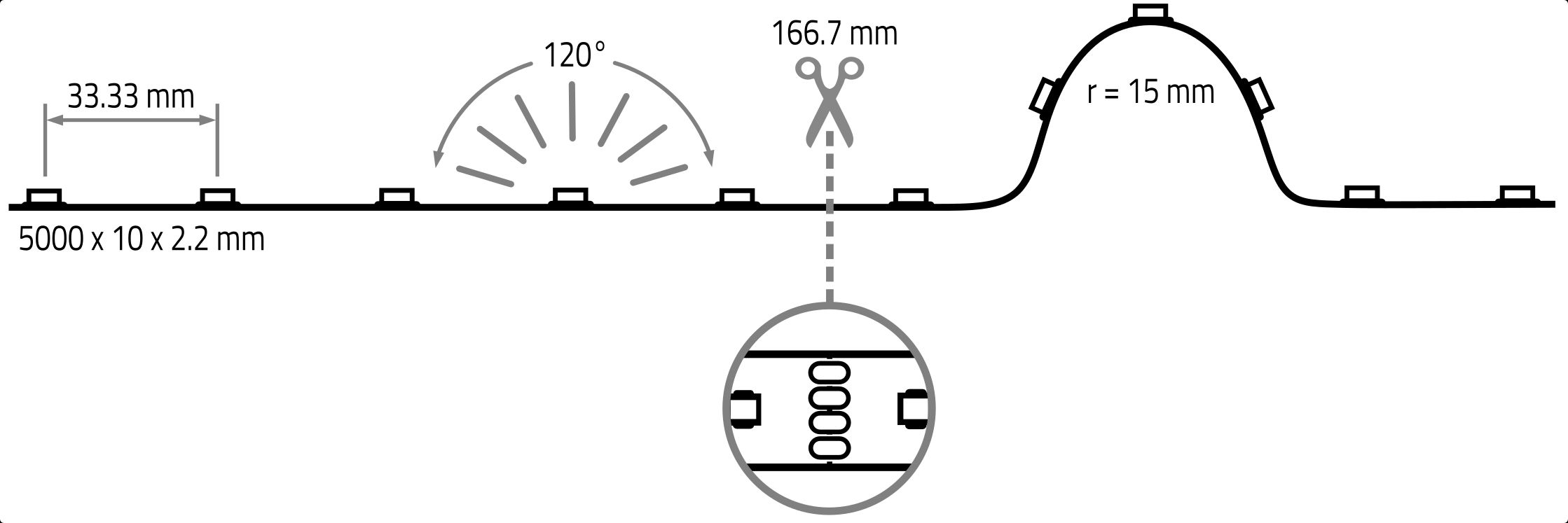

- Can be seperated every 166.7 mm or 5 LEDs
- Number of LEDs: 150
- LED pitch: 33.33 mm
- beam angle: 120°
- CRI:
- Lumen per meter: 238 lm
- Voltage: 24V DC
- Power per meter: 7,2 W
- Lifetime L70B50: >= 69.000 h
- LxWxH in mm: 5.000 x 10 x 2,2
- Easy installation with solderless connector (optional)
- Maximum length per connection: 10 meter. New connectors for greater length.
- Delivery contents: 5 meter roll, 5 power supply connector profi,
- 1 direct connector profi
Technical Data
| BAR code: | 4012094865751 |
|---|---|
| Width: | 10 mm |
| Height: | 2 mm |
| Length: | 5000 mm |
| Unit Code: | piece |
| Customer discount group code: | ST |
| Lumen per fixture (lm): | 1190 lm |
| Lumen per LED (lm): | 7,92 lm |
| Current: | 1500 mA |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 30 |
| Cutting length in mm: | 166,7 mm |
| Power W/m: | 7,2 |
| Lumen per meter: | 238 |
| Lumen per watt: | 33,06 |
| IP protection rating: | 20 |
| Power: | 36 W |
| Catalog color code: | weiss |
| Led color code: | RGB |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 150 |
| Re skus: | 68405,68415,68490,68897,68898 |
| L70: | 36000 |
| LebensdauerL70B50: | 69000 |
| Ecodesign: | not relevant |
| Psb: | 0,00 |
| Service life L90B10: | 35000 |
