CE
Only suitable for indoor installations
Parallel connection
Protection class III
RoHS
Product number:
86151

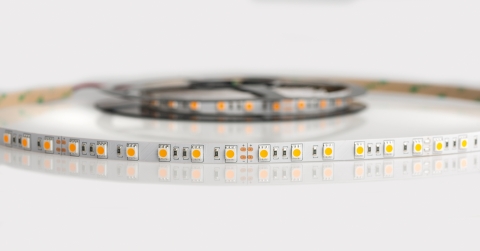

Flex.LED Strip,24V,Innen,1700K Flame
Product information "Flex.LED Strip,24V,Innen,1700K Flame"
- flexible LED Strip with self adhesive backside,
- for indoor use.
- can be seperated every 100 mm or 6 LEDs
- number of LEDs: 300
- LED pitch: 16.67 mm
- beam angle: 120°
- lumen per meter: 1136 lm
- voltage: 24V DC
- power per meter: 14,4 W
- lifetime L70: >= 36.000h
- energy efficiency class: A+
- LxWxH in mm: 5.000 x 10 x 2
- Easy installation with solderless connector (optional).
- Maximum length per connection: 10 meter. New connectors for greater length.
- Delivery contents: 5 meter roll, 1 power supply connector, 1 direct connector
Technical Data
| BAR code: | 4012094861517 |
|---|---|
| Width: | 10 mm |
| Height: | 2 mm |
| Length: | 5000 mm |
| Unit Code: | piece |
| Customer discount group code: | R2 |
| Lumen per fixture (lm): | 5680 lm |
| Lumen per LED (lm): | 18,93 lm |
| Current: | 3000 mA |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 60 |
| Cutting length in mm: | 100 mm |
| Power W/m: | 14,4 |
| Lumen per meter: | 1136 |
| Lumen per watt: | 78,88 |
| IP protection rating: | 20 |
| Power: | 72 W |
| Catalog color code: | sonstige |
| Led color code: | ca. 1700K flame |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 300 |
| Re skus: | 70421,70422,70432,70531,70532 |
| Auslaufartikel: | Yes |
| L70: | 36000 |
| Ecodesign: | not assigned |
