CE
Disposal instructions according to 2012/19/EU
Only suitable for indoor installations
Parallel connection
Protection class III
RoHS
Product number:
86141
Flex.LED Strip,24V,Innen,1700K Flame

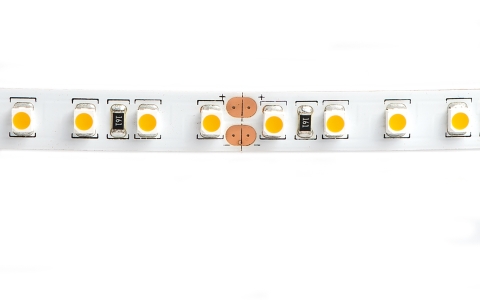

Product information "Flex.LED Strip,24V,Innen,1700K Flame"
- flexible LED Strip with self adhesive backside,
- for indoor use.
- Can be seperated every 5 cm or 6 LEDs
- Number of LEDs: 600
- LED pitch: 8 mm
- Beam angle: 120°
- Lumen per meter: 698 lm
- Voltage: 24V DC
- Power per meter: 9,6 W
- Lifetime L70B50: >= 36.000 h
- LxWxH in mm: 5.000 x 8 x 2,2
- Easy installation with solderless connector (optional).
- Maximum length per connection: 10 meter. New connectors for greater length.
- Delivery contents: 5 meter roll
- SECONDLIFE ITEM -heavily discounted- only while stocks last!
Technical Data
| BAR code: | 4012094861418 |
|---|---|
| Width: | 8 mm |
| Height: | 2 mm |
| Length: | 5000 mm |
| Unit Code: | piece |
| Customer discount group code: | SL |
| Lumen per fixture (lm): | 3490 lm |
| Lumen per LED (lm): | 5,81 lm |
| Current: | 2000 mA |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 120 |
| Cutting length in mm: | 50 mm |
| Power W/m: | 9,6 |
| Lumen per meter: | 698 |
| Lumen per watt: | 72,7 |
| IP protection rating: | 20 |
| Power: | 48 W |
| Catalog color code: | sonstige |
| Led color code: | ca. 1700K flame |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 600 |
| Re skus: | 70534,70538 |
| Auslaufartikel: | Yes |
| L70: | 36000 |
| LebensdauerL70B50: | 36000 |
| Ecodesign: | not relevant |
