CE
Parallel connection
Protection class III
RoHS
UV-resistant
Product number:
86758

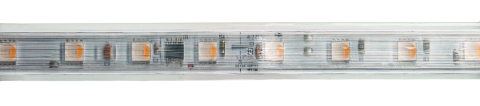

Flex.LED Strip,24V,IP67,RGBW 5 Meter
Product information "Flex.LED Strip,24V,IP67,RGBW 5 Meter"
- Flexible LED Stripe sealed in UV-, Chlorine-,
- salt water- and solvent resitant transparent PVC
- for indoor- and outdoor use, IP67
- cuttable every 125 mm / 7 LEDs
- Amount of LEDs: 280
- LED spacing: 17.85 mm
- Beam Angle: 120°
- CRI: 70
- Light flux per metre: 569 lm
- Load per Meter: 15 W
- Lifespan L70: >= 36.000 h
- Energy efficiencyclass: B
- LxWxH in mm: 5.000 x 15.5 x 6
- Temperature range: -20 to +45°C
- Processing temperature: +10 to +45°C
- Maximum length per connection: 5 metre
- Easy installation due to solder-free connectors
- Bending diameter: 50 mm
- Scope of delivery: 5 metre roll, with in-feeder connector
- provided at one end and end-cap at the other end.
- Attention: do not run all at same time on
- maximum load (max. 80%)
Technical Data
| BAR code: | 4012094867588 |
|---|---|
| Width: | 15 mm |
| Height: | 6 mm |
| Length: | 5000 mm |
| Unit Code: | piece |
| Customer discount group code: | R2 |
| Lumen per fixture (lm): | 2845 lm |
| Lumen per LED (lm): | 10,16 lm |
| Current: | 3125 mA |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 56 |
| Cutting length in mm: | 125 mm |
| Power W/m: | 15 |
| Lumen per meter: | 569 |
| Lumen per watt: | 37,93 |
| IP protection rating: | 67 |
| Power: | 75 W |
| CRI: | 70 |
| Catalog color code: | ohne |
| Led color code: | RGBW 2700K |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 280 |
| Gehaeuse code: | Kunststoff |
| Re skus: | 68322,68328,85477,88458,89600,89990 |
| Auslaufartikel: | Yes |
| L70: | 36000 |
| Ecodesign: | not assigned |
