Product number:
86562
Flex.LED Strip,24V,IP67,BLAU
Product information "Flex.LED Strip,24V,IP67,BLAU"
- flexible LED strip extruded with polyurethan
- and self-adhesive back,
- for indoor and outdoor use, IP67

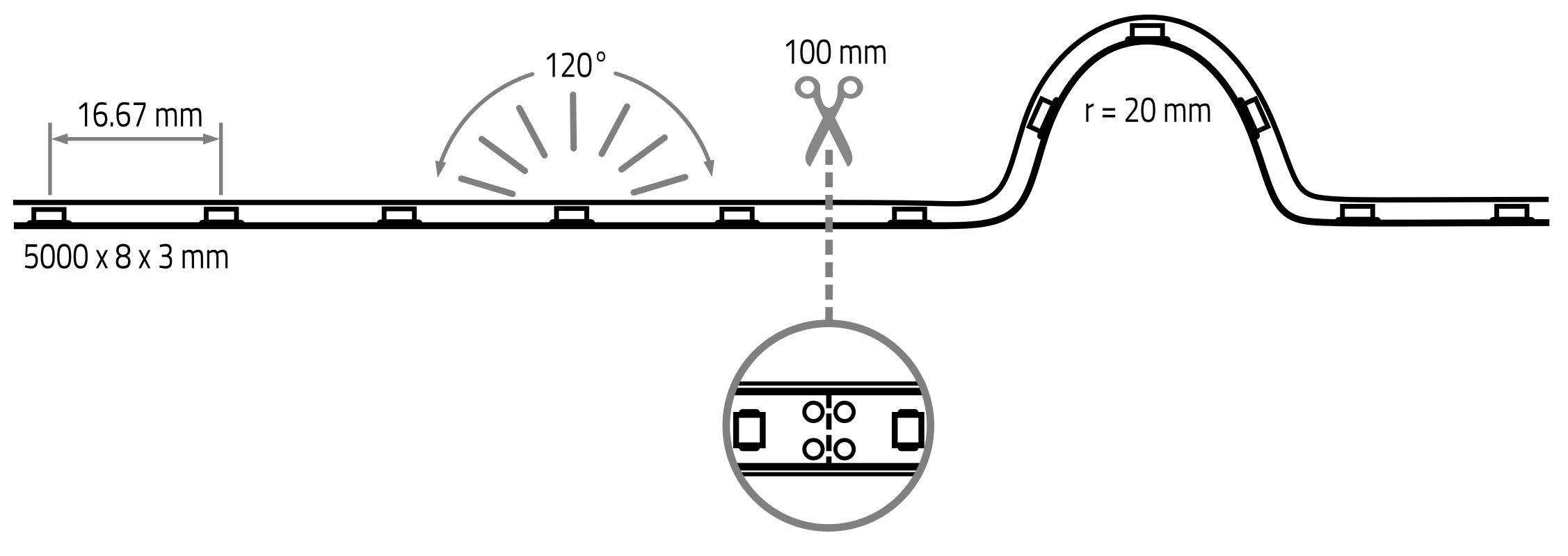

- cuttable every 100 mm / 6 LEDs
- number of LEDs: 300
- LED pitch: 16.67 mm
- beam angle: 120°
- CRI: > -
- Light flux per metre: 74 lm
- load per metre: 4,8 W
- L70: >= 65.000 h
- LxWxH in mm: 5.000 x 8 x 3
- Maximum length per connection: 10 metres.
- Feed in anew for longer lengths.
Technical Data
| BAR code: | 4012094865621 |
|---|---|
| Width: | 8 mm |
| Height: | 3 mm |
| Length: | 5000 mm |
| Unit Code: | piece |
| Customer discount group code: | ST |
| Lumen per fixture (lm): | 370 lm |
| Lumen per LED (lm): | 1,24 lm |
| Current: | 1000 mA |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 60 |
| Cutting length in mm: | 100 mm |
| Power W/m: | 4,8 |
| Lumen per meter: | 74 |
| Lumen per watt: | 15,42 |
| IP protection rating: | 67 |
| Power: | 24 W |
| Catalog color code: | weiss |
| Led color code: | Blau |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 300 |
| Gehaeuse code: | Kunststoff |
| Re skus: | 80494,85271 |
| L70: | 36000 |
| LebensdauerL70B50: | 65000 |
| Ecodesign: | not relevant |
| Psb: | 0,00 |
| Service life L90B10: | 35000 |
