CE
Disposal instructions according to 2012/19/EU
Parallel connection
Protection class III
RoHS
Product number:
86475

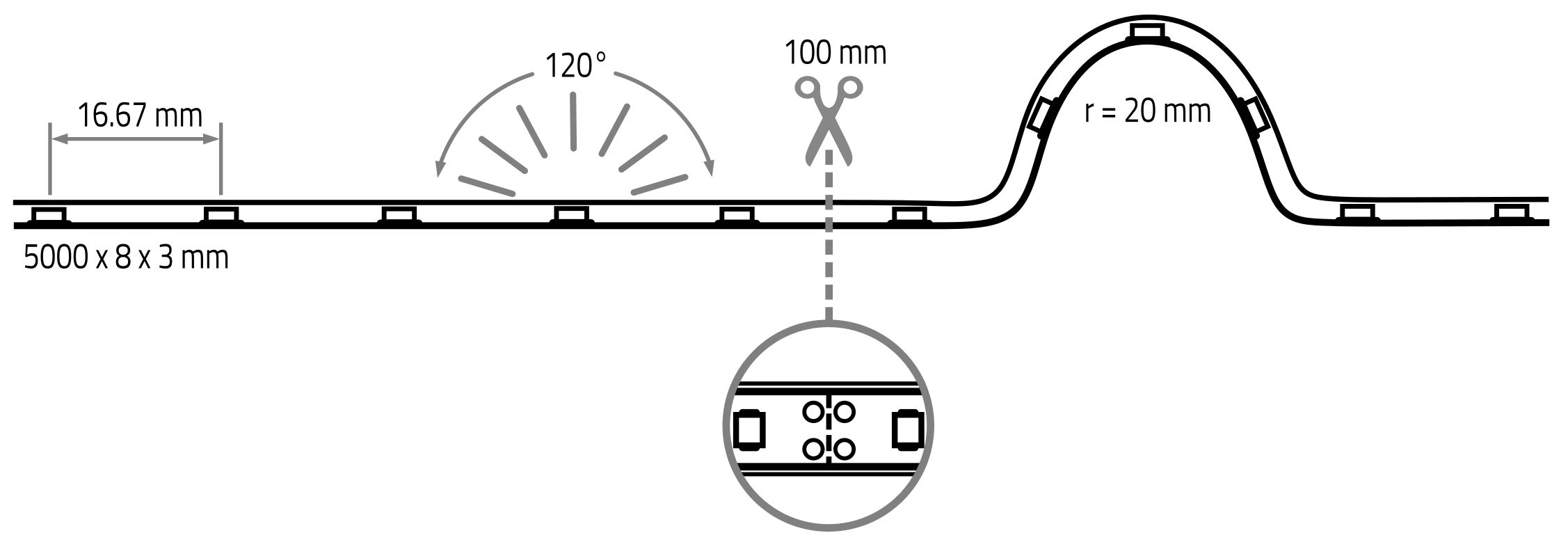

Flex.LED Strip,24V,IP67,3000K
Product information "Flex.LED Strip,24V,IP67,3000K"
- flexible LED strip extruded with polyurethan
- and self-adhesive back,
- for indoor and outdoor use, IP67
- cuttable every 100 mm / 6 LEDs
- number of LEDs: 300
- LED spacing: 16.67 mm
- beam angle: 120°
- CRI: > 80
- Light flux per metre: 386 lm
- load per metre: 4,8 W
- Energy efficiency class: G
- lifetime L70B50: >= 72,000 h
- LxWxH in mm: 5,000 x 8 x 3
- Maximum length per connection: 10 metres.
- New connection for greater length.
Technical Data
| BAR code: | 4012094864754 |
|---|---|
| Width: | 8 mm |
| Height: | 3 mm |
| Length: | 5000 mm |
| Unit Code: | piece |
| Customer discount group code: | SL |
| Lumen per fixture (lm): | 1930 lm |
| Lumen per LED (lm): | 6,43 lm |
| Current: | 1000 mA |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 60 |
| Cutting length in mm: | 100 mm |
| Power W/m: | 4,8 |
| Lumen per meter: | 386 |
| Lumen per watt: | 80,42 |
| IP protection rating: | 67 |
| Power: | 24 W |
| Energy efficiency class: | EEK-Label_G |
| CRI: | 80 |
| Catalog color code: | weiss |
| Led color code: | ca. 3000K warmweiß |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 300 |
| Gehaeuse code: | Kunststoff |
| Re skus: | 80474,85271 |
| Auslaufartikel: | Yes |
| L70: | 36000 |
| LebensdauerL70B50: | 72000 |
| Ecodesign: | light source |
| Service life L90B10: | 35000 |
