CE
Parallel connection
Protection class III
RoHS
Product number:
79527

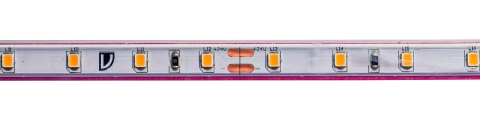

Flex.LED Strip,24V,IP67,2700K,CRI98
Product information "Flex.LED Strip,24V,IP67,2700K,CRI98"
- flexible LED Strip
- for indoor use, IP67
- Can be seperated every 100 mm or 6 LEDs
- Number of LEDs: 300
- LED pitch: 16.67 mm
- beam angle: 120°
- CRI: >98
- Lumen per metre: 370 lm
- Voltage: 24 V DC
- Power per meter: 4.8 W
- Lifetime L70: >= 50.000 h
- Energy efficiency class: A
- LxWxH in mm: 5.000 x 10 x 4.6
- Easy installation with solderless connector (optional).
- Maximum length per connection: 10 metre. New connectors for greater length.
- Delivery contents: 5 metre reel with 300 mm connection cable
Technical Data
| BAR code: | 4012094795270 |
|---|---|
| Width: | 10 mm |
| Height: | 4 mm |
| Length: | 5000 mm |
| Unit Code: | piece |
| Customer discount group code: | R2 |
| Lumen per fixture (lm): | 1850 lm |
| Lumen per LED (lm): | 6,16 lm |
| Current: | 1000 mA |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 60 |
| Cutting length in mm: | 100 mm |
| Power W/m: | 4,8 |
| Lumen per meter: | 370 |
| Lumen per watt: | 77,08 |
| IP protection rating: | 67 |
| Power: | 24 W |
| CRI: | 98 |
| Led color code: | ca. 2700K ultra warmweiß |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 300 |
| Gehaeuse code: | Kunststoff |
| Re skus: | 70590,70591 |
| Auslaufartikel: | Yes |
| L70: | 50000 |
| Ecodesign: | not assigned |
