CE
Disposal instructions according to 2012/19/EU
Parallel connection
Protection class III
RoHS
UV-resistant
Product number:
82565

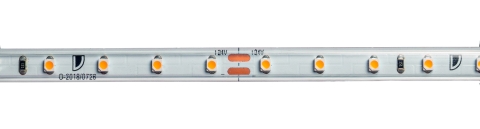

Flex.LED Strip,24V,IP66,3000K
Product information "Flex.LED Strip,24V,IP66,3000K"
- flexible LED-strip with self adhesive backside,
- for indoor and outdoor use, IP66
- uv-resistant

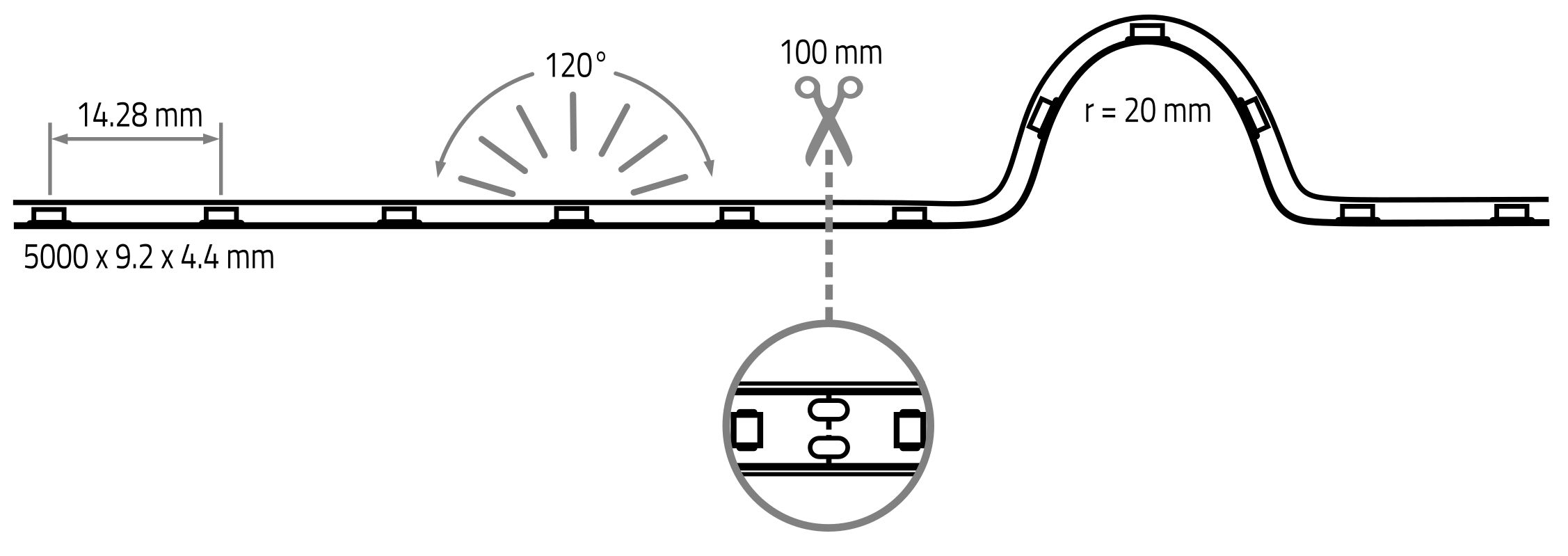

- can be seperated every 100 mm or 7 LEDs
- number of LEDs: 350
- LED pitch: 14.28 mm
- beam angle: 120°
- CRI: >90
- luminous flux per meter: 401 lm
- input: 24V DC
- power per meter: 4.8 W
- lifetime L70B50: >= 36.000 h
- energy efficiency class: G
- LxWxH in mm: 5.000 x 9.2 x 4.4
- Maximum length per connection: 5 meter. New connectors for greater length.
- Delivery contents: 5 meter reel with 300 mm connecting cable,
- 10 x mounting bracket, 10 x screw
Technical Data
| BAR code: | 4012094825656 |
|---|---|
| Width: | 9 mm |
| Height: | 4 mm |
| Length: | 5000 mm |
| Unit Code: | piece |
| Customer discount group code: | ST |
| Lumen per fixture (lm): | 2005 lm |
| Lumen per LED (lm): | 5,72 lm |
| Current: | 1000 mA |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 70 |
| Cutting length in mm: | 100 mm |
| Power W/m: | 4,8 |
| Lumen per meter: | 401 |
| Lumen per watt: | 83,54 |
| IP protection rating: | 66 |
| Power: | 24 W |
| Energy efficiency class: | EEK-Label_G |
| CRI: | 90 |
| Catalog color code: | weiss |
| Led color code: | ca. 3000K warmweiß |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 350 |
| Re skus: | 70590,70591 |
| L70: | 36000 |
| LebensdauerL70B50: | 36000 |
| Ecodesign: | light source |
| Psb: | 0,00 |
| Service life L90B10: | 13000 |
