CE
Disposal instructions according to 2012/19/EU
Parallel connection
Protection class III
RoHS
UV-resistant
Product number:
82165

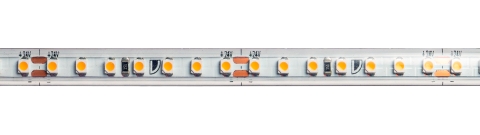

Flex.LED Strip,24V,IP66,3000K
Product information "Flex.LED Strip,24V,IP66,3000K"
- flexible LED-strip with self adhesive backside,
- for indoor and outdoor use, IP66
- uv-resistant

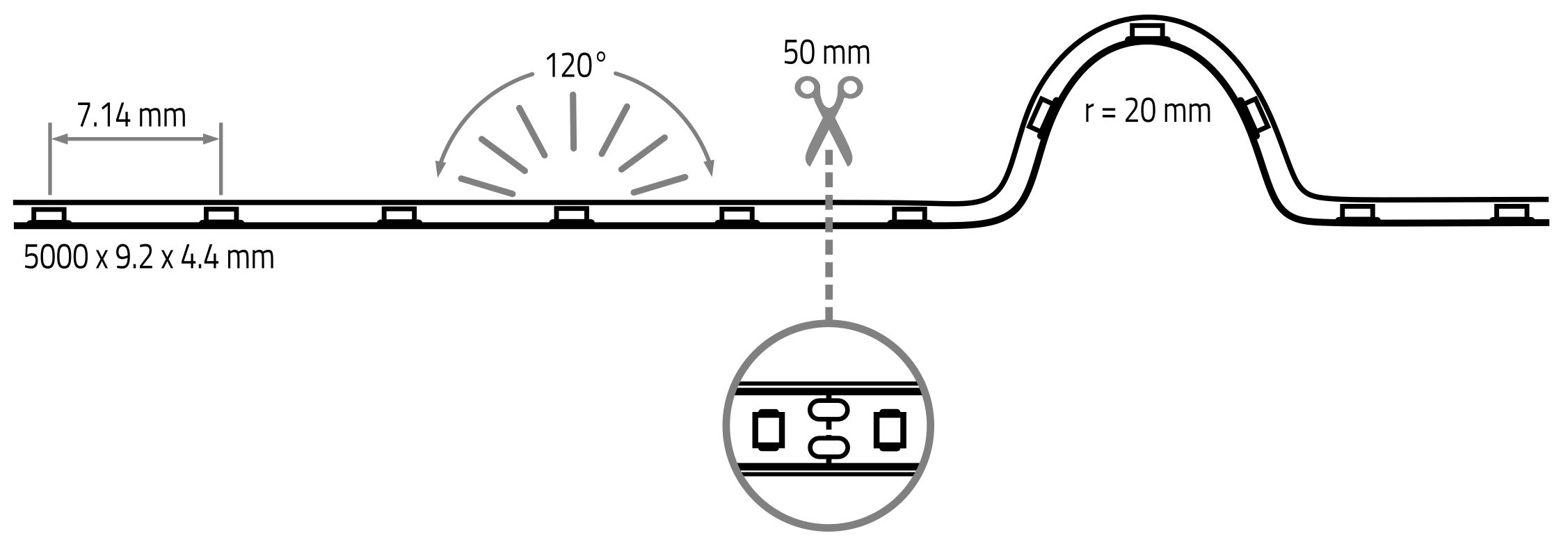

- can be seperated every 50 mm or 7 LEDs
- number of LEDs: 700
- LED pitch: 7.14 mm
- beam angle: 120°
- CRI: >90
- luminous flux per meter: 696 lm
- input: 24V DC
- power per meter: 9,6 W
- lifetime L70: >= 36.000 h
- LxWxH in mm: 5.000 x 9,2 x 4,4
- Maximum length per connection: 5 meter. New connectors for greater length.
- Delivery contents: 5 meter reel with 300 mm connecting cable,
- 10 x mounting bracket, 10 x screw
Technical Data
| BAR code: | 4012094821658 |
|---|---|
| Width: | 9 mm |
| Height: | 4 mm |
| Length: | 5000 mm |
| Unit Code: | piece |
| Customer discount group code: | R2 |
| Lumen per fixture (lm): | 3480 lm |
| Lumen per LED (lm): | 4,97 lm |
| Current: | 2000 mA |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 140 |
| Cutting length in mm: | 50 mm |
| Power W/m: | 9,6 |
| Lumen per meter: | 696 |
| Lumen per watt: | 72,5 |
| IP protection rating: | 66 |
| Power: | 48 W |
| CRI: | 90 |
| Catalog color code: | weiss |
| Led color code: | ca. 3000K warmweiß |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 700 |
| Auslaufartikel: | Yes |
| L70: | 36000 |
| Ecodesign: | light source |
