CE
Disposal instructions according to 2012/19/EU
Parallel connection
Protection class III
REACH
RoHS
Product number:
84565
Flex.LED Strip,24V,IP65,3000K,CRI80
Product information "Flex.LED Strip,24V,IP65,3000K,CRI80"
- in heat-shrink tubing with self-adhesive backside,
- for indoor and outdoor use, IP65
- not UV-resistant

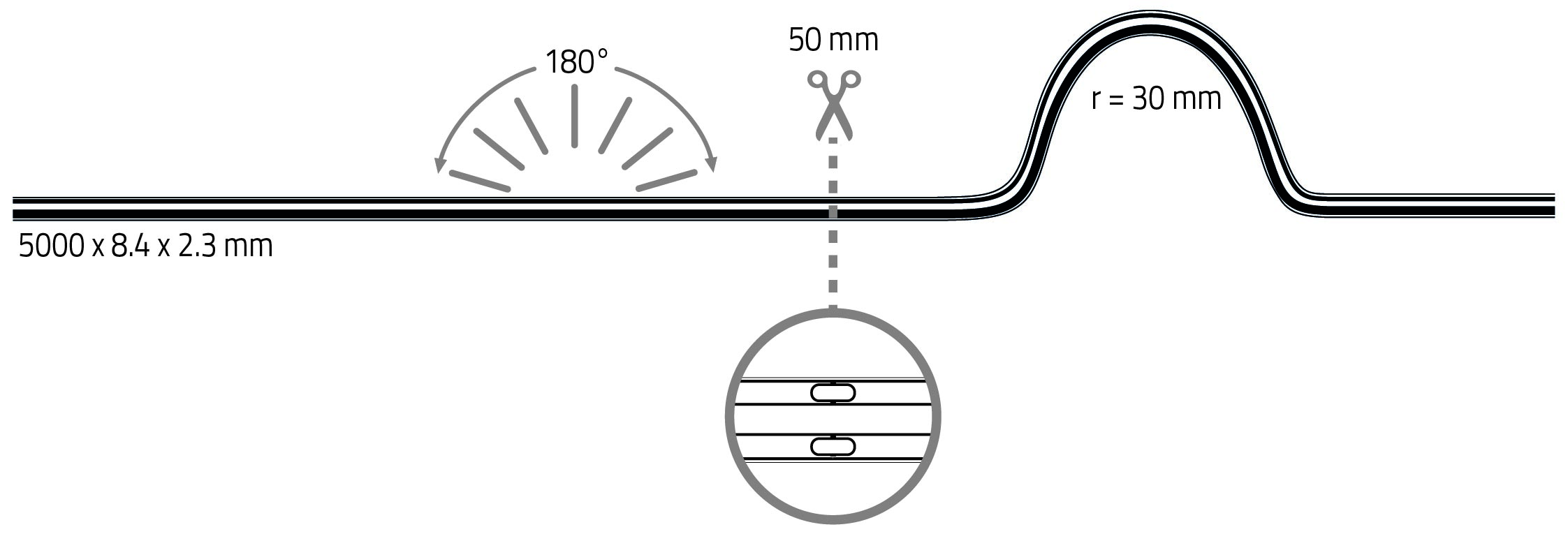

- cuttable every 50 mm or 24 LEDs
- number of LEDs: 2400
- LED pitch: 2.08 mm
- beam angle: 180°
- CRI: >80
- luminous flux per meter: 630 lm
- input: 24 V DC
- power per meter: 5 W
- lifetime L70B50: >= 54.000 h
- energy efficiency class: E
- LxWxH in mm: 5.000 x 8.4 x 2.3
- Maximum length per connection: 5 meter. New connectors for greater length.
- Scope of delivery: 5 metre roll with 300 mm connection cable,
- 10x feed shrink tubing, 10x end cap shrink tubing
Technical Data
| BAR code: | 4012094845654 |
|---|---|
| Width: | 8 mm |
| Height: | 2 mm |
| Length: | 5000 mm |
| Unit Code: | piece |
| Customer discount group code: | ST |
| Lumen per fixture (lm): | 3150 lm |
| Lumen per LED (lm): | 1,32 lm |
| Current: | 1042 mA |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 480 |
| Cutting length in mm: | 50 mm |
| Power W/m: | 5 |
| Lumen per meter: | 630 |
| Lumen per watt: | 126 |
| IP protection rating: | 65 |
| Power: | 25 W |
| Energy efficiency class: | EEK-Label_E |
| CRI: | 80 |
| Led color code: | ca. 3000K warmweiß |
| Leuchte: | including LED |
| Beam angle: | 180 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 2400 |
| Gehaeuse code: | Kunststoff |
| LebensdauerL70B50: | 54000 |
| Ecodesign: | light source |
| Psb: | 0,00 |
| Service life L90B10: | 20000 |
