CE
Disposal instructions according to 2012/19/EU
Only suitable for indoor installations
Parallel connection
Protection class III
REACH
RoHS
Product number:
72007
Flex.LED-Strip,24V,5W/m,Innen,2700K
Product information "Flex.LED-Strip,24V,5W/m,Innen,2700K"
- flexible LED Strip with self adhesive backside,
- for indoor use, IP20

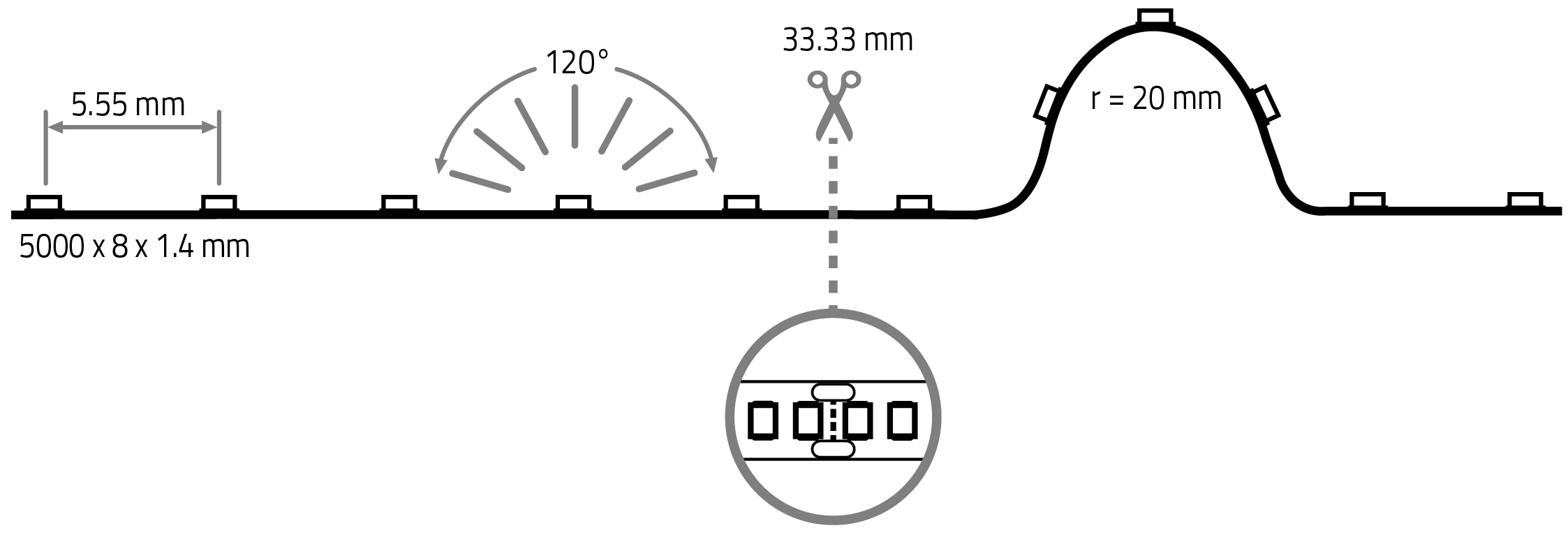

- can be seperated every 33.33 mm or 6 LEDs
- number of LEDs: 900
- LED pitch: 5.55 mm
- beam angle: 120°
- CRI: >90
- luminous flux per meter: 500 lm
- voltage: 24V DC
- power per meter: 5 W
- lifespan L70B50: >= 50.000 h
- energy efficiency class: F
- LxWxH in mm: 5.000 x 8 x 1.4
- Easy installation with solderless connector (optional).
- Maximum length per connection: 5 meter. New connectors for greater length.
- Delivery contents: 5 meter roll with 300 mm connection cable
Technical Data
| BAR code: | 4012094720074 |
|---|---|
| Width: | 8 mm |
| Height: | 1 mm |
| Length: | 5000 mm |
| Unit Code: | piece |
| Customer discount group code: | ST |
| Lumen per fixture (lm): | 2500 lm |
| Lumen per LED (lm): | 2,77 lm |
| Current: | 1042 mA |
| Temperature range: | -20 - 35 |
| LEDs per meter: | 180 |
| Cutting length in mm: | 33,33 mm |
| Power W/m: | 5 |
| Lumen per meter: | 500 |
| Lumen per watt: | 100 |
| IP protection rating: | 20 |
| Power: | 25 W |
| Energy efficiency class: | EEK-Label_F |
| CRI: | 90 |
| Catalog color code: | weiss |
| Led color code: | ca. 2700K ultra warmweiß |
| Leuchte: | without |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 900 |
| LebensdauerL70B50: | 50000 |
| Ecodesign: | light source |
| Psb: | 0,00 |
| Service life L90B10: | 36000 |
