CE
Disposal instructions according to 2012/19/EU
Parallel connection
Protection class III
RoHS
UV-resistant
Product number:
82077
Flex.LED Strip,24V,14,4W/m,IP67,2700K
Product information "Flex.LED Strip,24V,14,4W/m,IP67,2700K"
- Flexible LED Stripe sealed in transparent UV resistant silicone
- for indoor and outdoor use, IP67
- with self adhesive backside

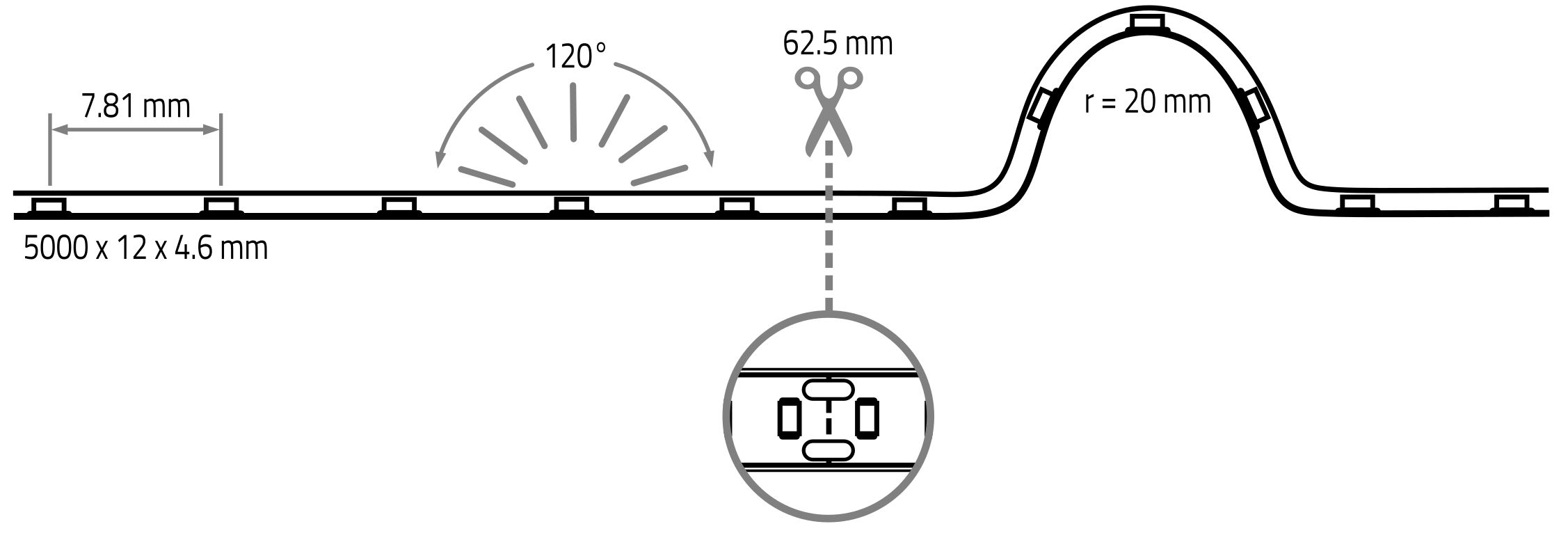

- cuttable every 62.5 mm / 8 LEDs
- amount of LEDs: 640
- LED pitch: 7.81 mm
- beam angle: 120°
- CRI: >90
- luminous flux per meter: 1355 lm
- voltage: 24 V DC
- power per meter: 14.4 W
- lifespan L70B50: >= 50,000 h
- energy efficiency class: F
- LxWxH in mm: 5.000 x 12 x 4.6
- Maximum length per connection: 5 meter. New connectors for greater length.
- Delivery contents: 5 meter roll with 300 mm connection cable,
- 10 x mounting bracket
Technical Data
| BAR code: | 4012094820774 |
|---|---|
| Width: | 12 mm |
| Height: | 4 mm |
| Length: | 5000 mm |
| Unit Code: | piece |
| Customer discount group code: | SL |
| Lumen per fixture (lm): | 6775 lm |
| Lumen per LED (lm): | 10,59 lm |
| Current: | 3000 mA |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 128 |
| Cutting length in mm: | 62,5 mm |
| Power W/m: | 14,4 |
| Lumen per meter: | 1355 |
| Lumen per watt: | 94,1 |
| IP protection rating: | 67 |
| Power: | 72 W |
| Energy efficiency class: | EEK-Label_F |
| CRI: | 90 |
| Catalog color code: | weiss |
| Led color code: | ca. 2700K ultra warmweiß |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 640 |
| Gehaeuse code: | Kunststoff |
| Auslaufartikel: | Yes |
| L70: | 36000 |
| LebensdauerL70B50: | 50000 |
| Ecodesign: | light source |
| Psb: | 0,0 |
