Product number:
S74928-V2

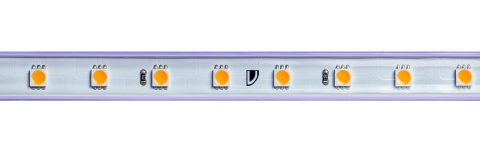

Flex.LED-Strip,200-240V 50/60Hz IP65
Product information "Flex.LED-Strip,200-240V 50/60Hz IP65"
- for outdoor use, IP65 and UV resistant
- can be seperated every 500 mm or 27 LEDs
- number of LEDs per meter: 54
- LED pitch: 18.51 mm
- beam angle: 120°
- CRI: >90
- lumen per meter: 633 lm
- voltage: 230V AC
- power per meter: 8 W
- lifetime L70B50: >= 30.000 h
- energy efficiency class: G
- WxH in mm: 15,5 x 6.5
- Easy installation with solderless connector.
- Maximum length per connection: 50 meter. New connectors for greater length.
Technical Data
| BAR code: | 4012094741284 |
|---|---|
| Width: | 15 mm |
| Height: | 6 mm |
| Unit Code: | meter |
| Customer discount group code: | ST |
| Lumen per LED (lm): | 11,72 lm |
| Temperature range: | -20 - 40 |
| LEDs per meter: | 54 |
| Cutting length in mm: | 500 mm |
| Power W/m: | 8 |
| Lumen per meter: | 633 |
| Lumen per watt: | 79,12 |
| IP protection rating: | 65 |
| Energy efficiency class: | EEK-Label_G |
| CRI: | 90 |
| Catalog color code: | weiss |
| Led color code: | ca. 4000K neutralweiß |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 220-240 V |
| Gehaeuse code: | Kunststoff |
| Re skus: | 68326,68327,74991 |
| Auslaufartikel: | Yes |
| L70: | 36000 |
| LebensdauerL70B50: | 30000 |
| Ecodesign: | light source |
| Service life L90B10: | 10000 |
