CE
Parallel connection
Protection class II
RoHS
UV-resistant
Product number:
74914

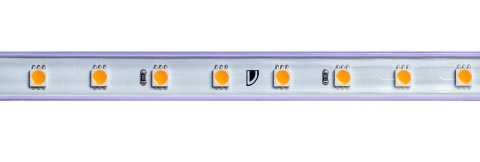

Flex.LED-Strip,200-240V 50/60Hz IP65
Product information "Flex.LED-Strip,200-240V 50/60Hz IP65"
- for outdoor use.
- can be seperated every 50 cm or 27 LEDs
- number of LEDs: 540
- LED pitch: 18.51 mm
- beam angle: 120°
- CRI: >90
- lumen per meter: 545 lm
- voltage: 230V AC
- power per meter: 8 W
- lifetime L70: >= 36.000 h
- LxWxH in mm: 10.000 x 15,5 x 6
- Easy installation with solderless connector.
- Maximum length per connection: 50 meter. New connectors for greater length.
- Delivery contents: 10 meter roll, in-feeder connector and an end cap as provided
- not dimmable
- SECONDLIFE ITEM -heavily discounted- only while stocks last!
Technical Data
| BAR code: | 4012094749143 |
|---|---|
| Width: | 15 mm |
| Height: | 6 mm |
| Length: | 10000 mm |
| Unit Code: | piece |
| Customer discount group code: | SL |
| Lumen per fixture (lm): | 5450 lm |
| Lumen per LED (lm): | 10,10 lm |
| Current: | 348 mA |
| Temperature range: | -20 - 40 |
| LEDs per meter: | 54 |
| Cutting length in mm: | 500 mm |
| Power W/m: | 8 |
| Lumen per meter: | 545 |
| Lumen per watt: | 68,13 |
| IP protection rating: | 65 |
| Power: | 80 W |
| CRI: | 90 |
| Catalog color code: | weiss |
| Led color code: | ca. 6000K kaltweiß |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Anzahl led: | 540 |
| Input voltage: | 230 |
| Auslaufartikel: | Yes |
| L70: | 36000 |
| LebensdauerL70B50: | 36000 |
| Ecodesign: | not assigned |
