CE
Only suitable for indoor installations
Parallel connection
Protection class III
RoHS
Very light - profile necessary
Product number:
79140
Flex. LEDStrip, 24V, Innen, DTW
Product information "Flex. LEDStrip, 24V, Innen, DTW"
- flexible LED Strip with self adhesive backside,
- for indoor use.

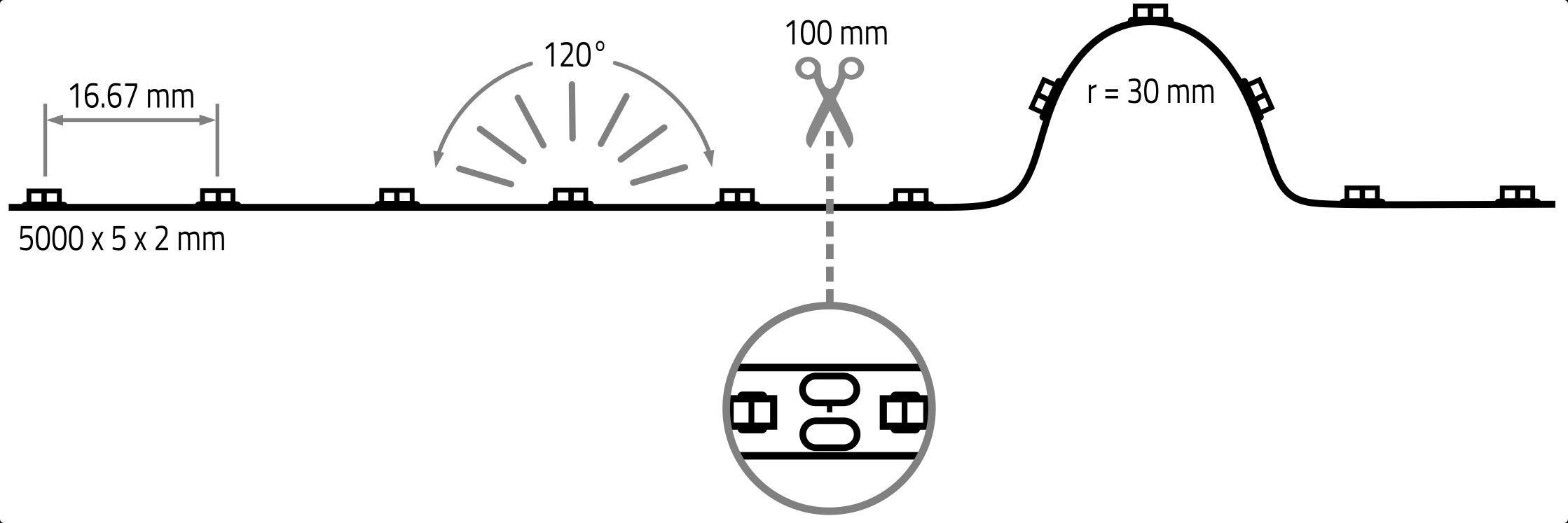

- can be seperated every 100 mm or 12 LEDs
- number of LEDs: 600
- LED pitch: 16.67 mm
- beam angle: 120°
- CRI: >80
- lumen per meter: 1543 lm
- Light colour: 3200 K - 1900 K (Dim To Warm)
- voltage: 24 V DC
- power per meter: 19.2 W
- lifetime L70: >= 36.000 h
- LxWxH in mm: 5.000 x 10 x 1,3
- Caution: Do not operate strip without aluminium profile
- and adequate ventilation.
- Maximum length per connection: 5 meter. New connectors for greater length.
- Delivery contents: 5 meter roll
Technical Data
| BAR code: | 4012094791401 |
|---|---|
| Width: | 10 mm |
| Height: | 1 mm |
| Length: | 5000 mm |
| Unit Code: | piece |
| Customer discount group code: | R2 |
| Lumen per fixture (lm): | 7715 lm |
| Lumen per LED (lm): | 12,85 lm |
| Current: | 4000 mA |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 120 |
| Cutting length in mm: | 100 mm |
| Power W/m: | 19,2 |
| Lumen per meter: | 1543 |
| Lumen per watt: | 80,36 |
| IP protection rating: | 20 |
| Power: | 96 W |
| CRI: | 80 |
| Catalog color code: | sonstige |
| Led color code: | 3300-1900K Dim to Warm |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 600 |
| Re skus: | 70531,70532,80473,85455 |
| Auslaufartikel: | Yes |
| L70: | 36000 |
| Ecodesign: | light source |
