Product number:
86549
Flex. LED-Strip im Schlauch,IP68,RGB
Product information "Flex. LED-Strip im Schlauch,IP68,RGB"
- Flexible LED Strips in Silicone Tubing
- for Indoor and Outdoor Use
- For Indoor and Outdoor Use

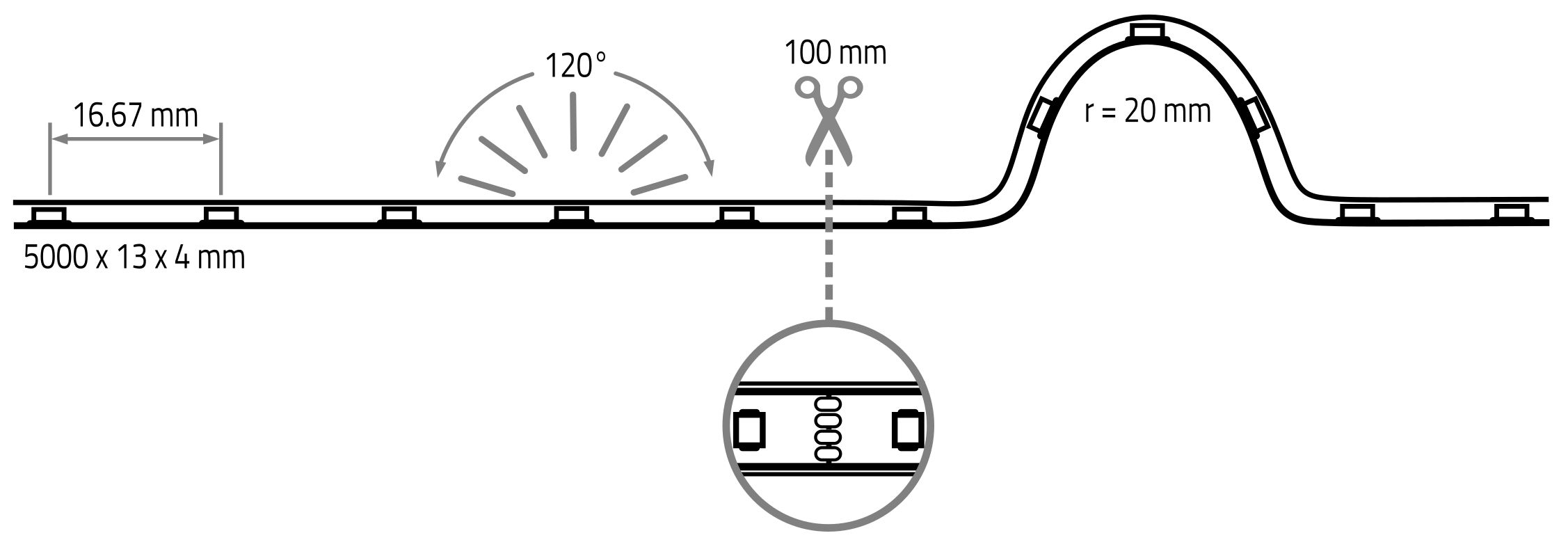

- RGB Double 12 Volt: Separable Every 5 cm or 3 LEDs
- RGB Double 24 Volt: Separable Every 10 cm or 6 LEDs
- RGB 12 Volt: Separable Every 10 cm or 3 LEDs
- LED Distance: RGB Double: 16 mm (300 LED)
- RGB: 33 mm (150 LED)
- Easy Installation with Solder-less Plug Connections.
- Maximum Length per Connection: 10 Meter (RGB
- Double: 8 Meter). New Connectors for Greater Lengths.
- Delivery Contents: 5 Meter Roll, 5 Power Supply Connector, 1 Direct
- Connector, 1 Connection Tubing, 30 Mounting
- Brackets, 2 End Caps, 2 Power Supply Connector Caps
- Sorted and Stored by Binning Code
Technical Data
| BAR code: | 4012094865492 |
|---|---|
| Width: | 13 mm |
| Height: | 4 mm |
| Length: | 5000 mm |
| Unit Code: | piece |
| Customer discount group code: | ST |
| Lumen per fixture (lm): | 1830 lm |
| Lumen per LED (lm): | 6,10 lm |
| Current: | 3000 mA |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 60 |
| Cutting length in mm: | 100 mm |
| Power W/m: | 14,4 |
| Lumen per meter: | 366 |
| Lumen per watt: | 25,42 |
| IP protection rating: | 68 |
| Power: | 72 W |
| Catalog color code: | weiss |
| Led color code: | RGB |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 300 |
| L70: | 36000 |
| LebensdauerL70B50: | 69000 |
| Ecodesign: | not relevant |
| Psb: | 0,00 |
| Service life L90B10: | 35000 |
