CE
Disposal instructions according to 2012/19/EU
Interseroh
Only suitable for indoor installations
Parallel connection
Protection class III
REACH
RoHS
Product number:
74403-V2
Flex. LED Leiste,Innen,RGBWW 3000K
Product information "Flex. LED Leiste,Innen,RGBWW 3000K"
- flexible LED Strip with self adhesive backside,
- for indoor use, IP20

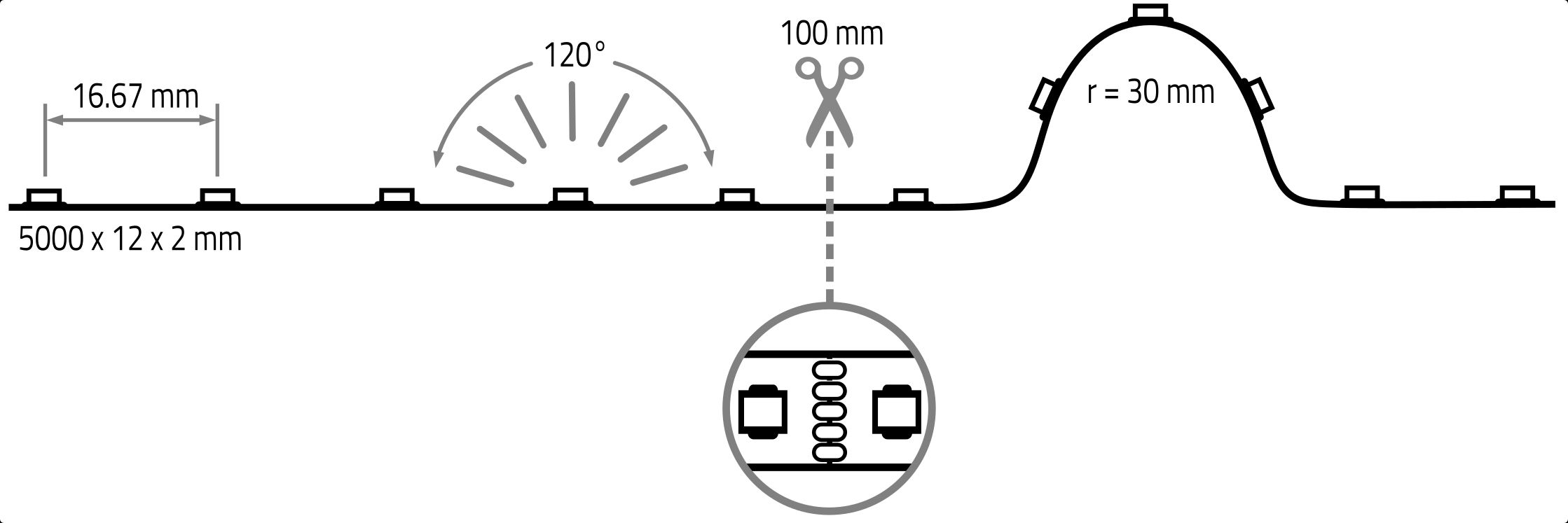

- Can be seperated every 100 mm or 6 LEDs
- Number of LEDs: 600
- LED pitch: 16.67 mm
- beam angle: 120°
- CRI: >80
- luminous flux per meter: 670 lm
- luminous flux per meter: 300 lm (3000 K)
- Voltage: 24V DC
- Power per meter: 14.4 W
- Lifetime L70B50: >= 36.000 h
- energy efficiency class: F
- LxWxH in mm: 10.000 x 12 x 2
- Easy installation with solderless connector (optional).
- Maximum length per connection: 10 meter. New connectors for greater length.
- Delivery contents: 10 meter roll with 300 mm connection cable
Technical Data
| BAR code: | 4012094724034 |
|---|---|
| Width: | 12 mm |
| Height: | 2 mm |
| Length: | 10000 mm |
| Unit Code: | piece |
| Customer discount group code: | ST |
| Lumen per fixture (lm): | 6700 lm |
| Lumen per LED (lm): | 11,17 lm |
| Current: | 6000 mA |
| Temperature range: | -20 - 40 |
| LEDs per meter: | 60 |
| Cutting length in mm: | 100 mm |
| Power W/m: | 14,4 |
| Lumen per meter: | 670 |
| Lumen per watt: | 46,53 |
| IP protection rating: | 20 |
| Power: | 144 W |
| Energy efficiency class: | EEK-Label_G |
| CRI: | 80 |
| Catalog color code: | weiss |
| Led color code: | RGB+WW 3000K |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 600 |
| Re skus: | 70500,70537,89995 |
| L70: | 36000 |
| LebensdauerL70B50: | 36000 |
| Ecodesign: | light source |
| Psb: | 0,00 |
| Service life L90B10: | 10000 |
