CE
Disposal instructions according to 2012/19/EU
Only suitable for indoor installations
Parallel connection
Protection class III
RoHS
Product number:
86520
Flex. LED Leiste,Innen,RGBA
€80.00
Product information "Flex. LED Leiste,Innen,RGBA"
- Flexible LED strip fitted with RGBA chips (4 colours in one chip)
- with self-adhesive back for indoor use
- 19.2W, 60 LED, 663 lm (RGBA) per metre

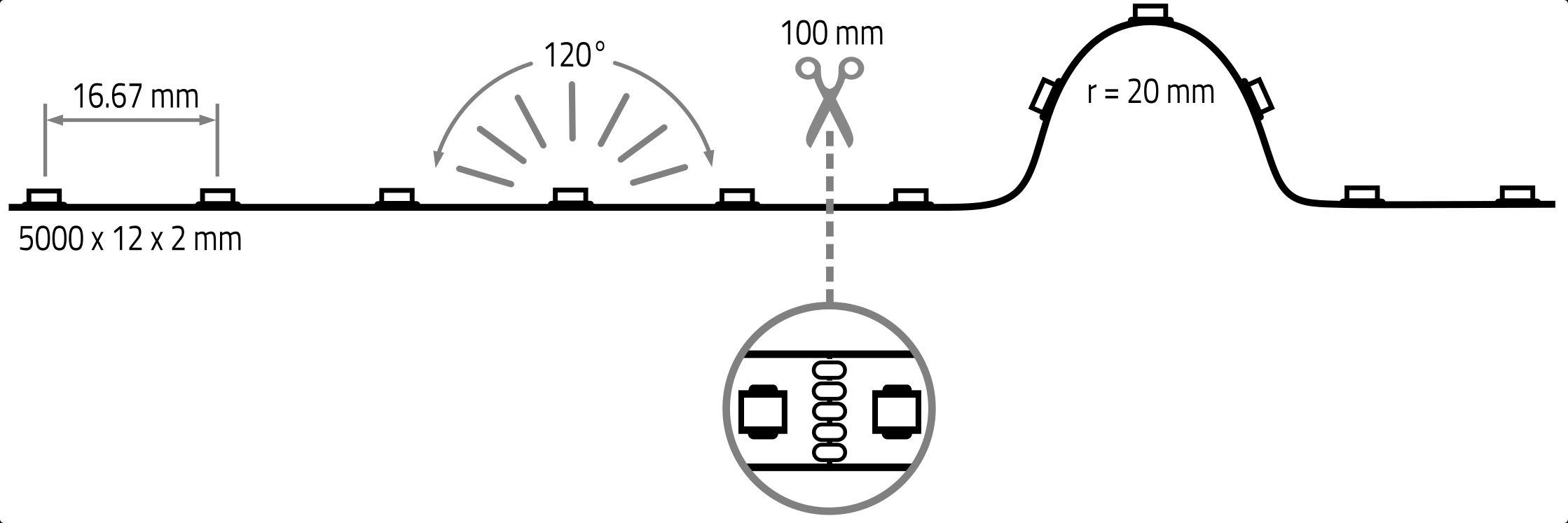

- Cuttable every 10 cm or 6 LEDs
- LED spacing: 16.67 mm
- Easy installation due to solder-free connectors
- Maximum length per connection: 10 metres.
- Feed in anew for longer lengths.
- Note: Do not operate strip without additional heat sink
- and adequate ventilation.
- Scope of delivery: 5 metre roll, 5 x in-feed connectors
- Lifespan L70B50: >= 69.000 hours
- SECONDLIFE ITEM -heavily discounted- only while stocks last!
Technical Data
| BAR code: | 4012094865201 |
|---|---|
| Width: | 12 mm |
| Height: | 3 mm |
| Length: | 5000 mm |
| Unit Code: | piece |
| Customer discount group code: | SL |
| Lumen per fixture (lm): | 3315 lm |
| Lumen per LED (lm): | 11,05 lm |
| Current: | 4 mA |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 60 |
| Cutting length in mm: | 100 mm |
| Power W/m: | 19,2 |
| Lumen per meter: | 663 |
| Lumen per watt: | 34,53 |
| IP protection rating: | 20 |
| Power: | 96 W |
| Catalog color code: | sonstige |
| Led color code: | RGBA amber |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 300 |
| Re skus: | 68405,68415,68490,68897,68898,80462,80479,85455 |
| Auslaufartikel: | Yes |
| L70: | 36000 |
| LebensdauerL70B50: | 69000 |
| Ecodesign: | not relevant |
| Service life L90B10: | 35000 |
