CE
Disposal instructions according to 2012/19/EU
Only suitable for indoor installations
Parallel connection
Protection class III
RoHS
Product number:
86512
Flex. LED Leiste,Innen,RGB+WW
Product information "Flex. LED Leiste,Innen,RGB+WW"
- Flexible LED strip fitted out alternatively with RGB and white SMD LEDs,
- self-adhesiveback, for indoor use
- 9.6W, 60 LED, max. 397 lm per metre
- luminous flux 3000K per meter: 198 lm
- various light control units with RGBW controller

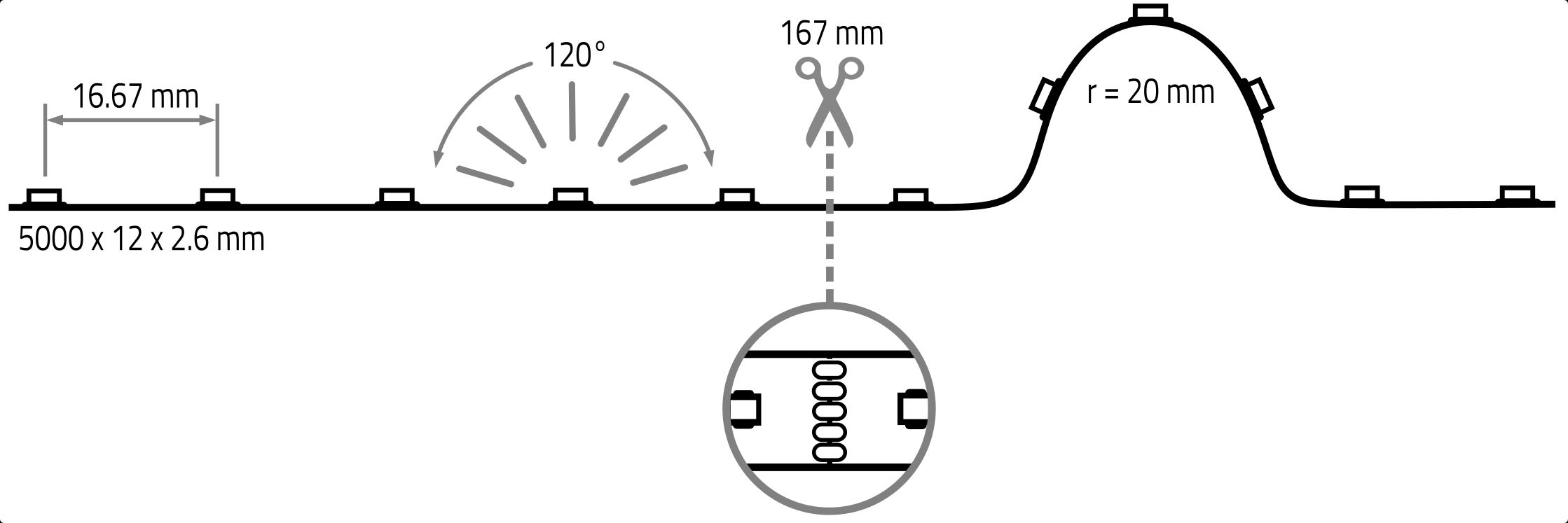

- cuttable every 16.7 cm or 10 LEDs
- LED spacing: 16.67 mm
- maximum length per connection: 5 metres.
- Feed in anew for longer lengths.
- Scope of delivery: 5 metre roll, 5 in-feed connectors,
- 1 x direct connector
- graded and stored by binning codes
- Lifespan L70B50: >= 54.000 hours
- Energy efficiencyclass: G
Technical Data
| BAR code: | 4012094865126 |
|---|---|
| Width: | 12 mm |
| Height: | 2 mm |
| Length: | 5000 mm |
| Unit Code: | piece |
| Customer discount group code: | ST |
| Lumen per fixture (lm): | 1985 lm |
| Lumen per LED (lm): | 6,61 lm |
| Current: | 2000 mA |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 60 |
| Cutting length in mm: | 167 mm |
| Power W/m: | 9,6 |
| Lumen per meter: | 397 |
| Lumen per watt: | 41,35 |
| IP protection rating: | 20 |
| Power: | 48 W |
| Energy efficiency class: | EEK-Label_G |
| CRI: | 80 |
| Catalog color code: | ohne |
| Led color code: | RGBW 3000K |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 300 |
| Re skus: | 68405,68415,68490,68897,68898,80462,80479 |
| L70: | 36000 |
| LebensdauerL70B50: | 69000 |
| Ecodesign: | light source |
| Psb: | 0,00 |
| Service life L90B10: | 35000 |
