CE
Only suitable for indoor installations
Parallel connection
Protection class III
RoHS
Product number:
86349

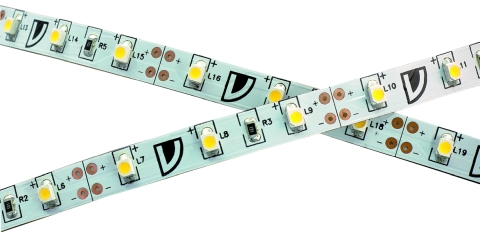

Flex. LED Leiste,Innen,5000K
Product information "Flex. LED Leiste,Innen,5000K"
- flexible LED Strip with self adhesive backside,
- for indoor use.
- Can be seperated every 100 mm or 6 LEDs
- Number of LEDs: 300
- LED pitch: 16.67 mm
- beam angle: 120°
- CRI: >80
- Lumen per meter: 510 lm
- Voltage: 24V DC
- Power per meter: 4,8 W
- Lifetime L70: >= 35.000h
- energy efficiency class: A+
- LxWxH in mm: 5.000 x 8 x 2,5
- Easy installation with solderless connector.
- Maximum length per connection: 10 meter. New connectors for greater length.
- Delivery contents: 5 meter roll, 5 power supply connector, 1 direct connector
- SECONDLIFE ITEM -heavily discounted- only while stocks last!
Technical Data
| BAR code: | 4012094863498 |
|---|---|
| Width: | 8 mm |
| Height: | 2 mm |
| Length: | 5000 mm |
| Unit Code: | piece |
| Customer discount group code: | SL |
| Lumen per fixture (lm): | 2070 lm |
| Lumen per LED (lm): | 6,90 lm |
| Current: | 1000 mA |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 60 |
| Cutting length in mm: | 100 mm |
| Power W/m: | 4,8 |
| Lumen per meter: | 414 |
| Lumen per watt: | 86,25 |
| IP protection rating: | 20 |
| Power: | 24 W |
| CRI: | 80 |
| Led color code: | ca. 5000K Tageslicht |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 300 |
| Re skus: | 70534,70538 |
| Auslaufartikel: | Yes |
| L70: | 36000 |
| LebensdauerL70B50: | 36000 |
| Ecodesign: | not assigned |
