Product number:
70224
Einspeisungsverb. Screw Einf. 8mm IP20
Product information "Einspeisungsverb. Screw Einf. 8mm IP20"
- Feed-in connector for single-colour LED strips 8 mm
- with screw contacts for safe contacting
- max. current carrying capacity: 6 A (12V/72W, 24V/144W)

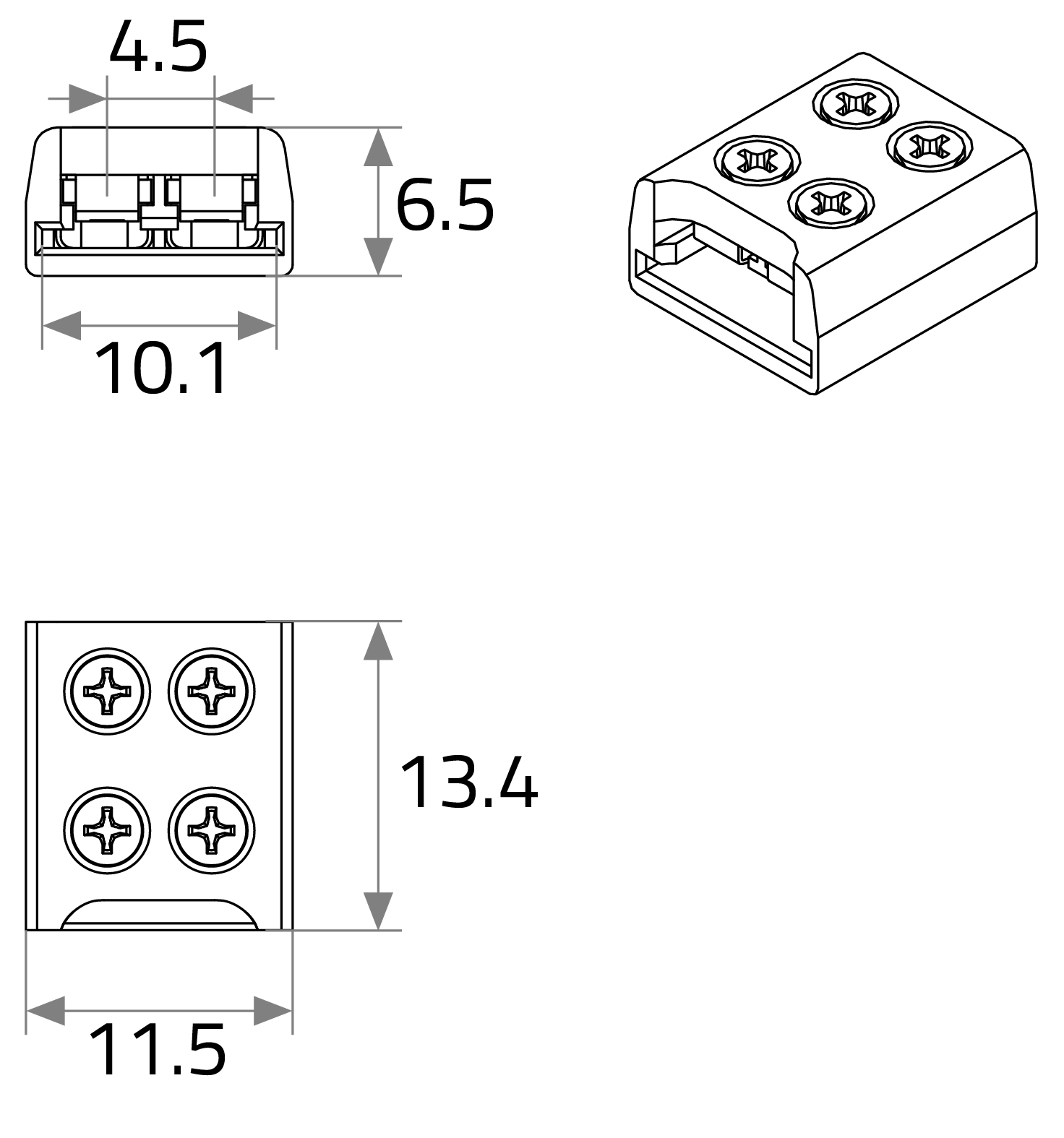

- LxWxH in mm: 13.4 x 11.5 x 6.5
- for wire cross-section: 0.32 - 1.32 sqmm
- suitable for the following LED strips:
- VARDAflex Eco: 82414, 82415, 82417, 82418
- VARDAflex Nova Eco Plus: 82765, 82768
- VARDAflex Standard: 84315, 84317
- VARDAflex Plus: 86141, 86149, 86439
Technical Data
| BAR code: | 4012094702247 |
|---|---|
| Width: | 11 mm |
| Height: | 6 mm |
| Length: | 13 mm |
| Unit Code: | piece |
| Customer discount group code: | ST |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 6000 mA |
| Temperature range: | -10 - 45 |
| IP protection rating: | 20 |
| Catalog color code: | farblos |
| Leuchte: | without |
| Voltage: | 3-24 V |
| Gehaeuse code: | Kunststoff |
| Ecodesign: | not assigned |
