CE
Only suitable for indoor installations
RoHS
Product number:
70520

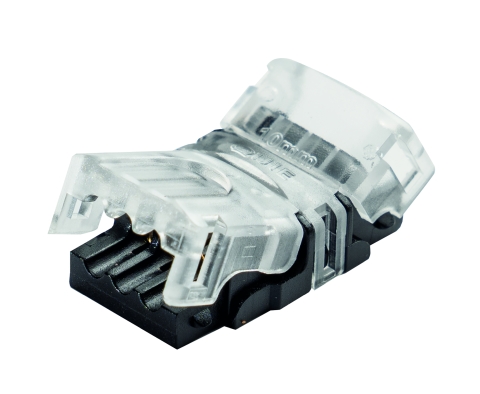

Einspeisungsverb. Push Select 10mm IP20
Product information "Einspeisungsverb. Push Select 10mm IP20"
- LxWxH in mm: 24.3 x 14.6 x 7.7
- for wire cross-section: 0.34 - 0.5 sq mm
- Suitable for following LED strips:
- VARDAflex Double Select ECO: 84529
- VARDAflex Select: 86528
- VARDAflex Single Select: 84859, 84859-V2
- VARDAflex Ultra Select : 86829
- max. current carrying capacity: 3.5 A (12V/42W, 24V/84W)
Technical Data
| BAR code: | 4012094705200 |
|---|---|
| Width: | 14 mm |
| Height: | 7 mm |
| Length: | 24 mm |
| Unit Code: | piece |
| Customer discount group code: | ST |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 3500 mA |
| Catalog color code: | farblos |
| Leuchte: | without |
| Voltage: | 3-24 V |
| Gehaeuse code: | Kunststoff |
| Re skus: | 70522,84859-V2,89993 |
| Ecodesign: | not assigned |
