CE
Only suitable for indoor installations
RoHS
Product number:
70533

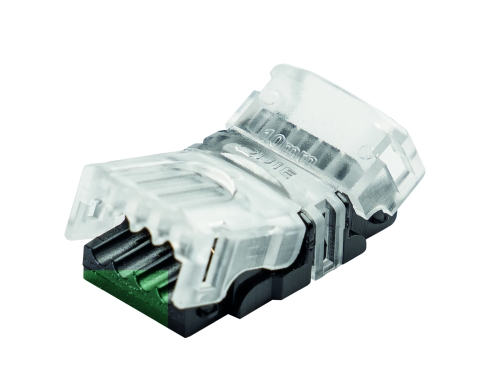

Einspeisungsverb. Push RGB 10mm IP20
Product information "Einspeisungsverb. Push RGB 10mm IP20"

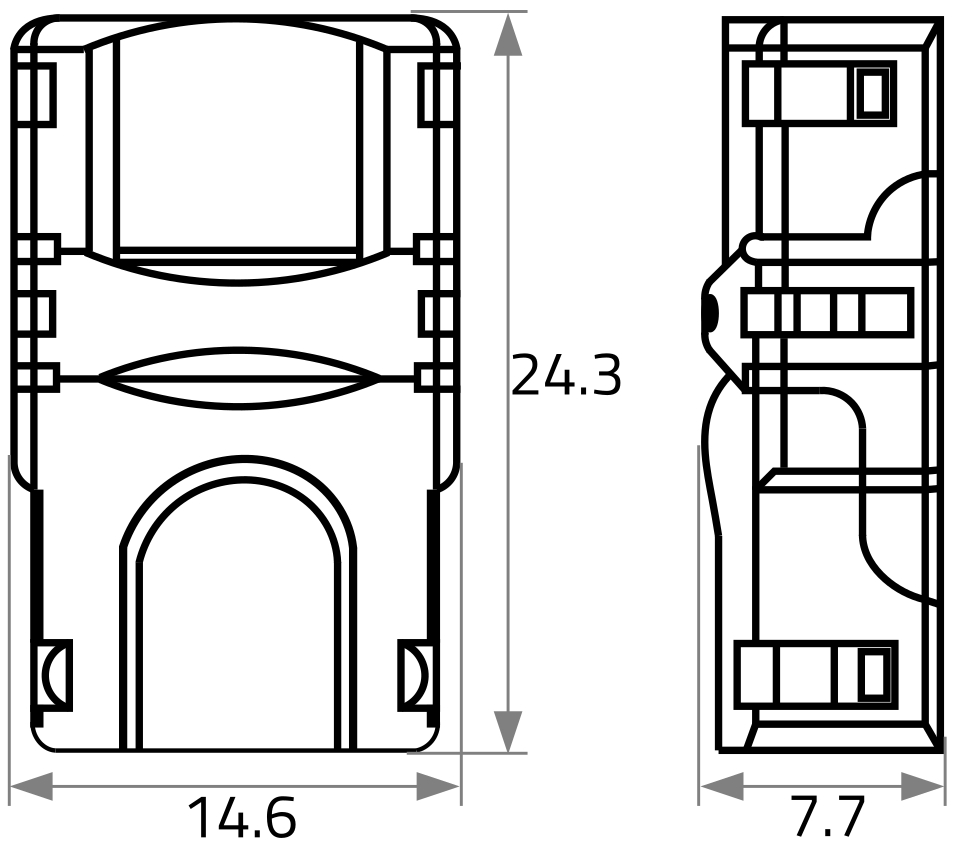

- LxWxH in mm: 24.3 x 14.6 x 7.7
- for wire cross-section: 0.34 - 0.5 sq mm
- Suitable for following LED strips:
- VARDAflex Select-CRI: 75530
- VARDAflex Nova RGB: 84575
- VARDAflex 3inONE-30: 86575
- VARDAflex 3inONE-60: 86577
- max. current carrying capacity: 3.5 A (12V/42W, 24V/84W)
Technical Data
| BAR code: | 4012094705330 |
|---|---|
| Width: | 14 mm |
| Height: | 7 mm |
| Length: | 24 mm |
| Unit Code: | piece |
| Customer discount group code: | ST |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 3500 mA |
| Catalog color code: | farblos |
| Leuchte: | without |
| Voltage: | 3-24 V |
| Gehaeuse code: | Kunststoff |
| Re skus: | 70539,84575,86575,86577,89994 |
| Ecodesign: | not assigned |
