CE
RoHS
Product number:
70595
Einspeisungsverb. Push Einf. 8mm IP67
Product information "Einspeisungsverb. Push Einf. 8mm IP67"

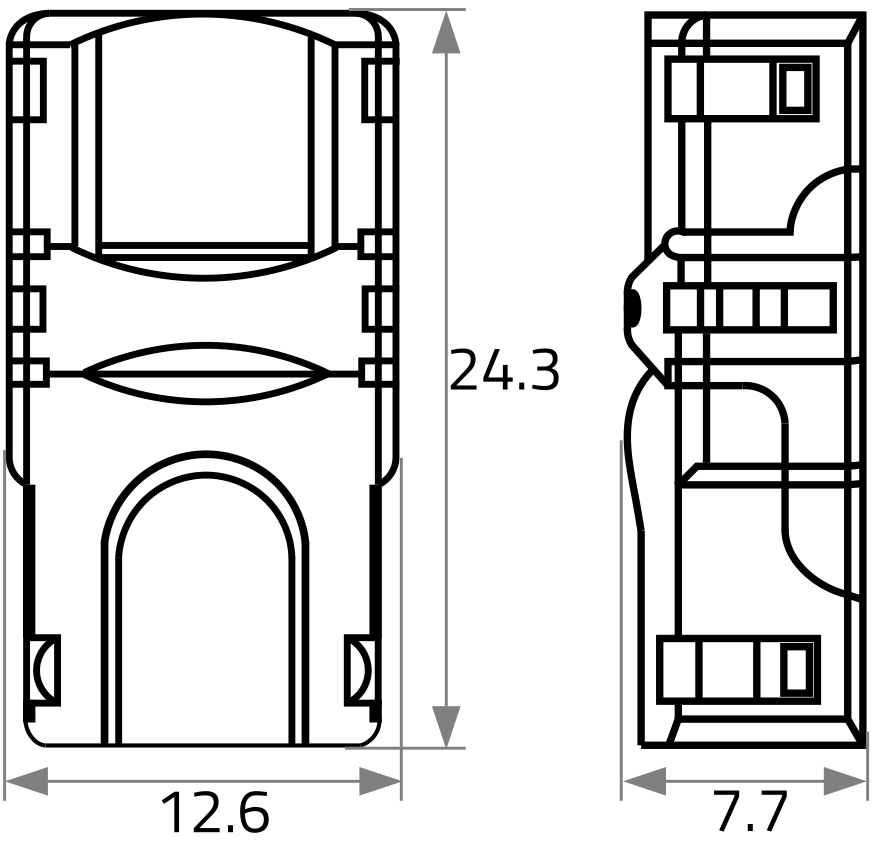

- LxWxH in mm: 24.3 x 12.6 x 7.7
- for wire cross-section: 0.34 - 0.75 sq mm
- max. current carrying capacity: 5 A (12V/60W, 24V/120W)
Technical Data
| BAR code: | 4012094705958 |
|---|---|
| Width: | 12 mm |
| Height: | 7 mm |
| Length: | 24 mm |
| Unit Code: | piece |
| Customer discount group code: | ST |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 5000 mA |
| Catalog color code: | farblos |
| Leuchte: | without |
| Voltage: | 3-24 V |
| Gehaeuse code: | Kunststoff |
| Ecodesign: | not assigned |
