CE
Only suitable for indoor installations
RoHS
Product number:
70534

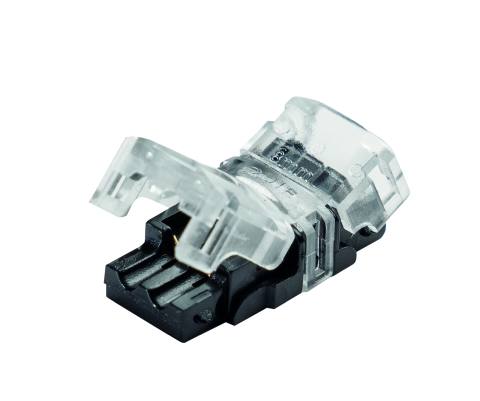

Einspeisung Push Einf. 8mm IP20
Product information "Einspeisung Push Einf. 8mm IP20"

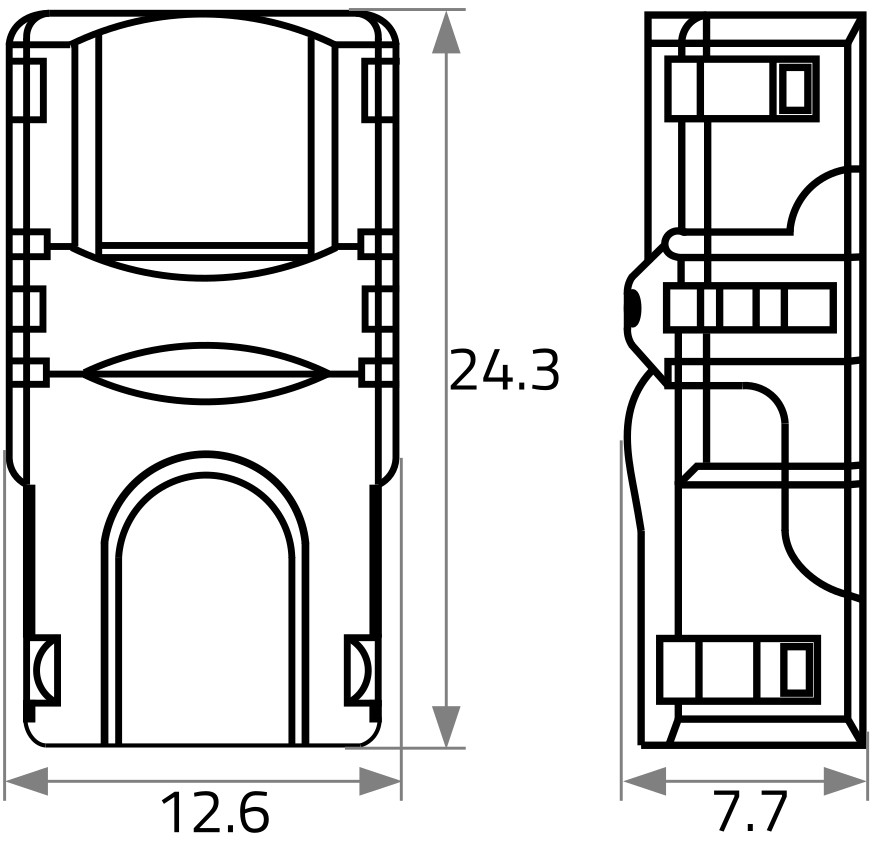

- LxWxH in mm: 24.3 x 12.6 x 7.7
- for wire cross-section: 0.34 - 0.75 sq mm
- Suitable for following LED strips:
- VARDAflex: 86349, 88345, 88348, 88349, 88540,
- 88541, 88542, 88544
- VARDAflex CRI95: 88414, 88415, 86414, 86417
- VARDAflex ECO: 82414, 82415, 82417, 82418
- VARDAflex Nova Plus ECO: 82763, 82765, 82768
- VARDAflex Plus: 88319, 86141, 86144, 86149, 86319
- VARDAflex Plus ECO: 82434, 82435, 82437, 82438
- VARDAflex Plus FullSpectrum: 86439
- VARDAflex Standard: 84315, 84317
- max. current carrying capacity: 3.5 A (12V/42W, 24V/84W)
- SECONDLIFE ITEM -heavily discounted- only while stocks last!
Technical Data
| BAR code: | 4012094705347 |
|---|---|
| Width: | 12 mm |
| Height: | 7 mm |
| Length: | 24 mm |
| Unit Code: | piece |
| Customer discount group code: | SL |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 3500 mA |
| Catalog color code: | sonstige |
| Leuchte: | without |
| Voltage: | 3-24 V |
| Gehaeuse code: | Kunststoff |
| Re skus: | 70538,82414,82415,82417,82418,84315,84317,86141,86149,89992 |
| Auslaufartikel: | Yes |
| Ecodesign: | not assigned |
