CE
Only suitable for indoor installations
RoHS
Product number:
70524

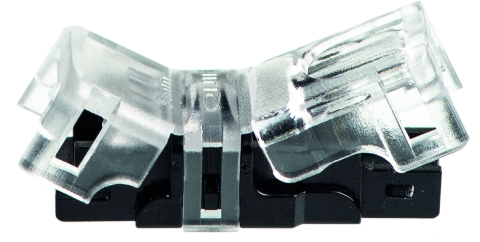

Einspeisung Push Einf. 5mm IP20
Product information "Einspeisung Push Einf. 5mm IP20"

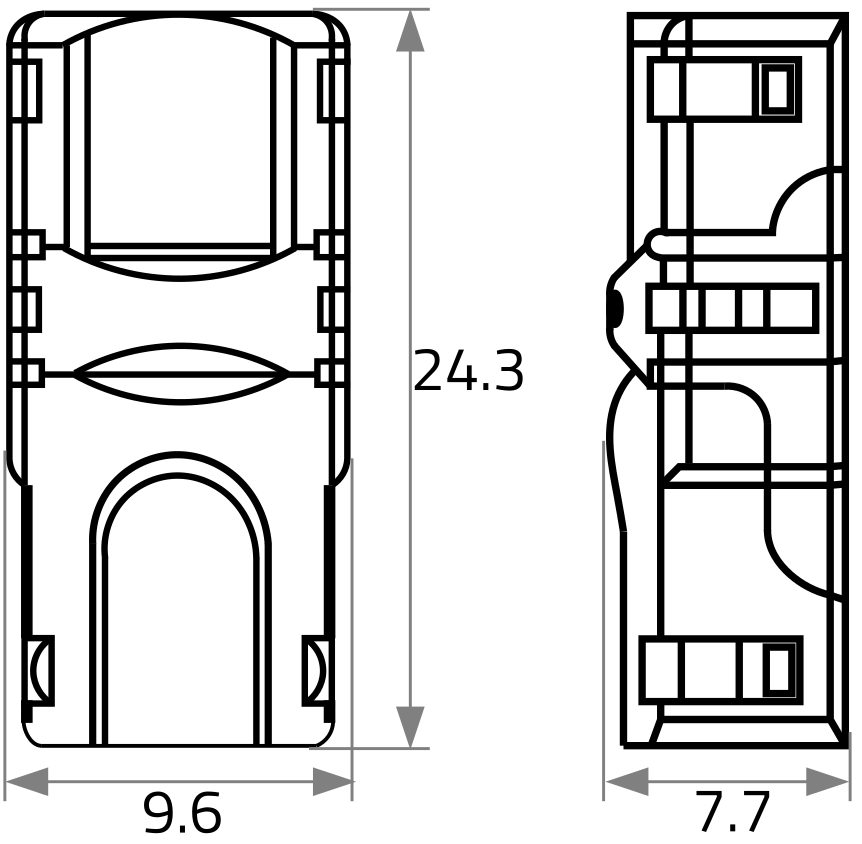

- LxWxH in mm: 24.3 x 9.6 x 7.7
- for wire cross-section: 0.34 - 0.54 sq mm
- Suitable for following LED strips:
- VARDAflex Mini Ultra: 84973, 84975
- max. current carrying capacity: 3.5 A (12V/42W, 24V/84W)
- SECONDLIFE ITEM -heavily discounted- only while stocks last!
Technical Data
| BAR code: | 4012094705248 |
|---|---|
| Width: | 9 mm |
| Height: | 7 mm |
| Length: | 24 mm |
| Unit Code: | piece |
| Customer discount group code: | SL |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 3500 mA |
| IP protection rating: | 20 |
| Catalog color code: | sonstige |
| Leuchte: | without |
| Voltage: | 3-24 V |
| Gehaeuse code: | Kunststoff |
| Re skus: | 70528,84973,89992 |
| Auslaufartikel: | Yes |
| Ecodesign: | not assigned |
