Product number:
70325

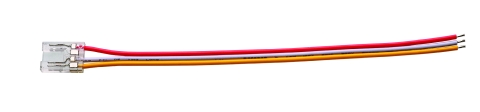

Einspeisung Gapless Select 10mm IP20
Product information "Einspeisung Gapless Select 10mm IP20"

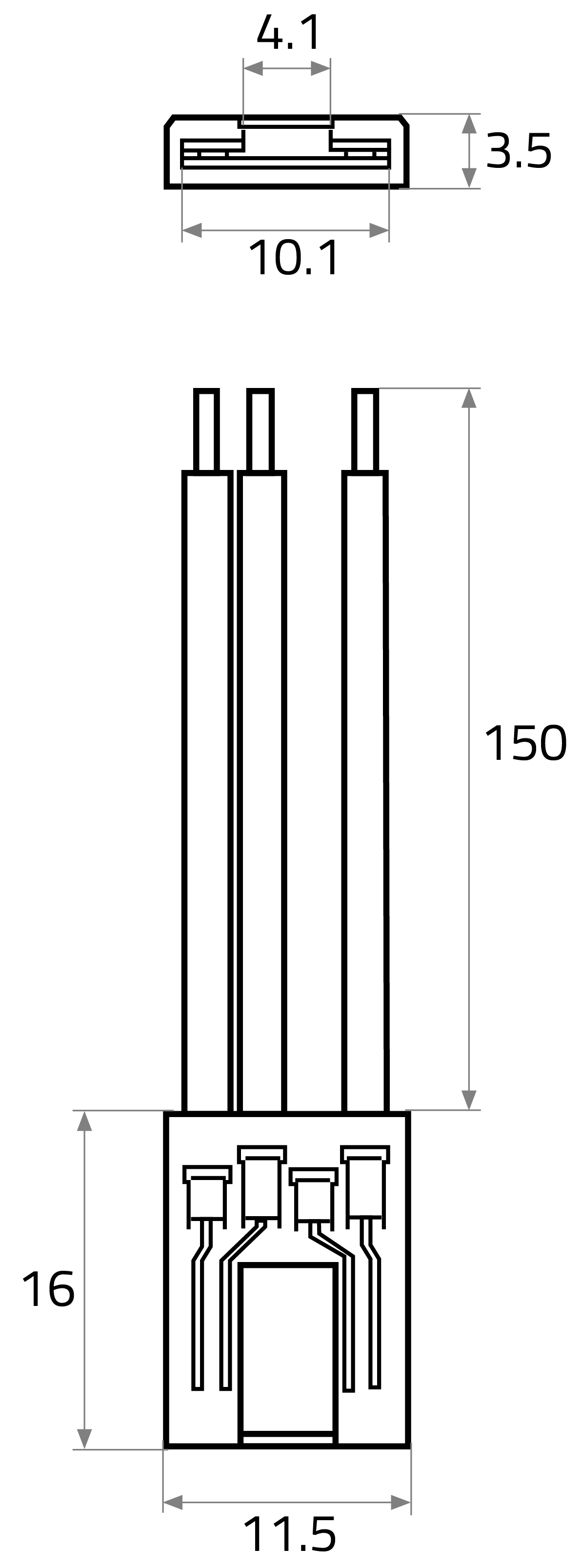

- LxWxH in mm: 16 x 11.5 x 3.5
- cable 150 mm (3 x 0.5 sq mm)
- material: polycarbonate
- suitable for following LED strips:
- VARDAflex COB Select: 74369
- only to be used at joints where there is no solder on the contacts.
- max. current carrying capacity: 3.5 A (12V/42W, 24V/84W)
Technical Data
| BAR code: | 4012094703251 |
|---|---|
| Width: | 11 mm |
| Height: | 3 mm |
| Length: | 16 mm |
| Unit Code: | piece |
| Customer discount group code: | ST |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 3500 mA |
| Temperature range: | -10 - 45 |
| IP protection rating: | 20 |
| Catalog color code: | farblos |
| Leuchte: | without |
| Voltage: | 3-24 V |
| Gehaeuse code: | Kunststoff |
| Re skus: | 74369 |
| Ecodesign: | not assigned |
