CE
Only suitable for indoor installations
RoHS
Product number:
70321

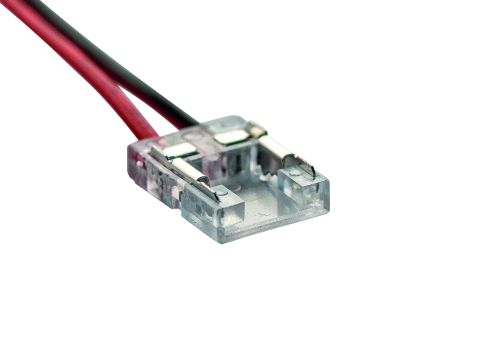

Einspeisung Gapless Einfarbig 10mm IP20
Product information "Einspeisung Gapless Einfarbig 10mm IP20"

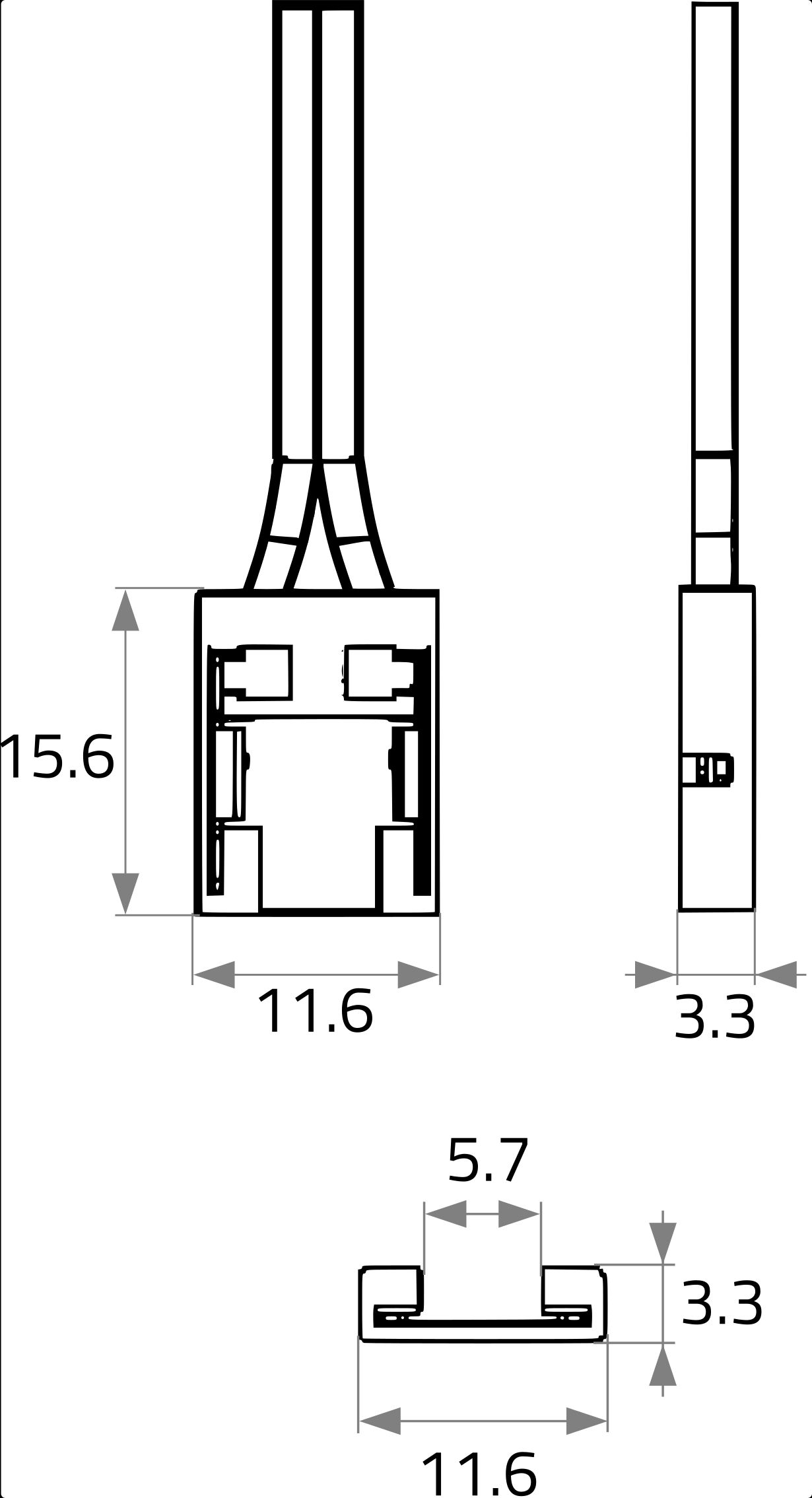

- LxWxH in mm: 15.6 x 11.6 x 3.3
- cable 150 mm (2 x 0.5 sq mm)
- material: polycarbonate
- suitable for following LED strips:
- VARDAflex Eco Plus REACH15: 82215-V2, 82217-V2, 82218-V2
- VARDAflex Eco Double: 82454, 82455, 82457, 82458
- VARDAflex Nova Plus: 82861, 82863, 82865, 82868
- VARDAflex Nova Double: 82873, 82875, 82878
- VARDAflex Nova Ultra: 82891, 82893, 82895, 82898, 79892
- VARDAflex Nova Triple: 82881, 82883, 82885, 82888, 79882
- VARDAflex Quantum Plus Profi: 84105, 84107, 84108
- VARDAflex Quantum Triple: 84115, 84117, 84118
- VARDAflex Pro: 71313, 71315
- VARDAflex Duo: 84863, 84865
- VARDAflex Plus DTW: 79141
- VARDAflex Plus Profi DTW: 79040
- VARDAflex COB Plus Profi: 84375, 84377, 84378
- only to be used at joints where there is no solder on the contacts.
- max. current carrying capacity: 3.5 A (12V/42W, 24V/84W)
Technical Data
| BAR code: | 4012094703213 |
|---|---|
| Width: | 11 mm |
| Height: | 3 mm |
| Length: | 15 mm |
| Unit Code: | piece |
| Customer discount group code: | ST |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 3500 mA |
| Temperature range: | -10 - 45 |
| IP protection rating: | 20 |
| Catalog color code: | farblos |
| Leuchte: | without |
| Voltage: | 3-24 V |
| Gehaeuse code: | Kunststoff |
| Ecodesign: | not assigned |
