CE
Only suitable for indoor installations
RoHS
Product number:
70328

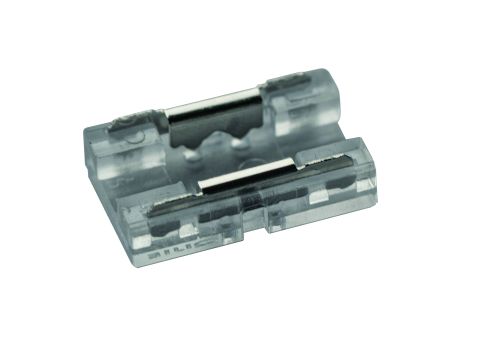

Direktverbinder Gapless Einfarbig 8mm IP20
Product information "Direktverbinder Gapless Einfarbig 8mm IP20"

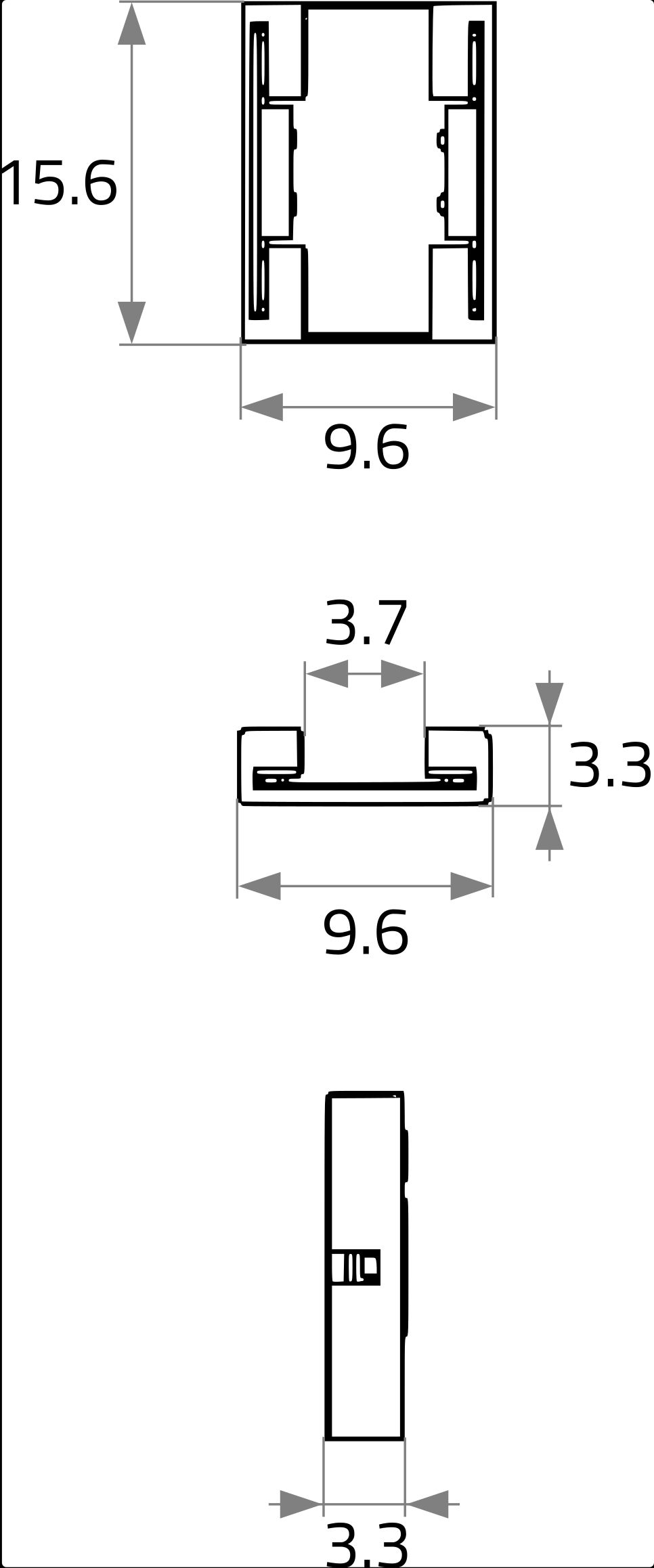

- LxWxH in mm: 15.6 x 9.6 x 3.3
- material: polycarbonate
- suitable for following LED strips:
- VARDAflex COB Plus: 86332, 86335, 86337, 86338
- VARDAflex Eco: 82414, 82415, 82417, 82418
- VARDAflex Eco Plus: 82434, 82435, 82437, 82438, 82474, 82475, 82477, 82478
- VARDAflex Nova Eco Plus: 82763, 82765, 82768
- VARDAflex Nova Double: 79872
- VARDAflex Standard: 84315, 84317
- VARDAflex COB Free-Cut: 84365, 84367, 84368
- only to be used at joints where there is no solder on the contacts.
- max. current carrying capacity: 5 A (12V/60W, 24V/120W)
Technical Data
| BAR code: | 4012094703282 |
|---|---|
| Width: | 9 mm |
| Height: | 3 mm |
| Length: | 15 mm |
| Unit Code: | piece |
| Customer discount group code: | ST |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 5500 mA |
| Temperature range: | -10 - 45 |
| IP protection rating: | 20 |
| Catalog color code: | farblos |
| Leuchte: | without |
| Voltage: | 3-24 V |
| Gehaeuse code: | Kunststoff |
| Ecodesign: | not assigned |
